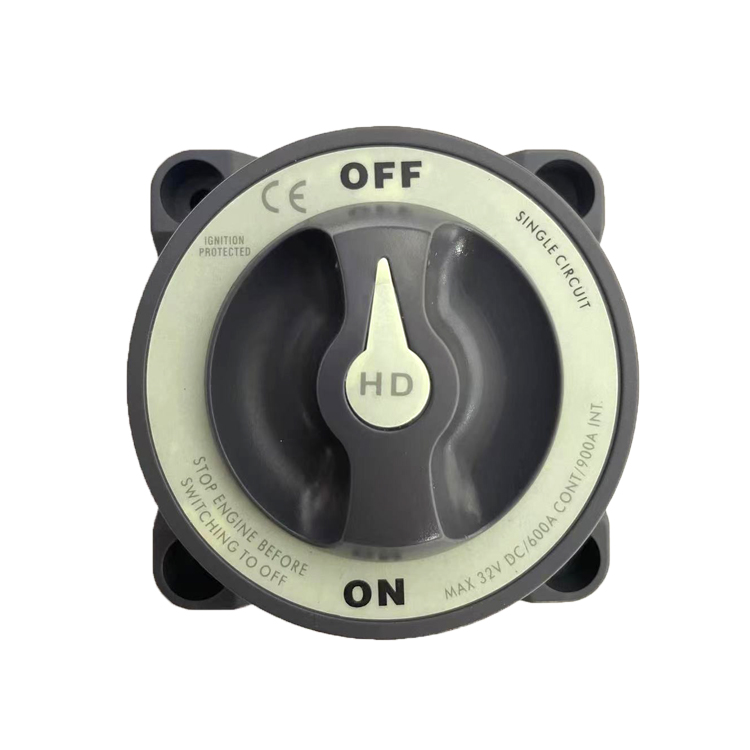

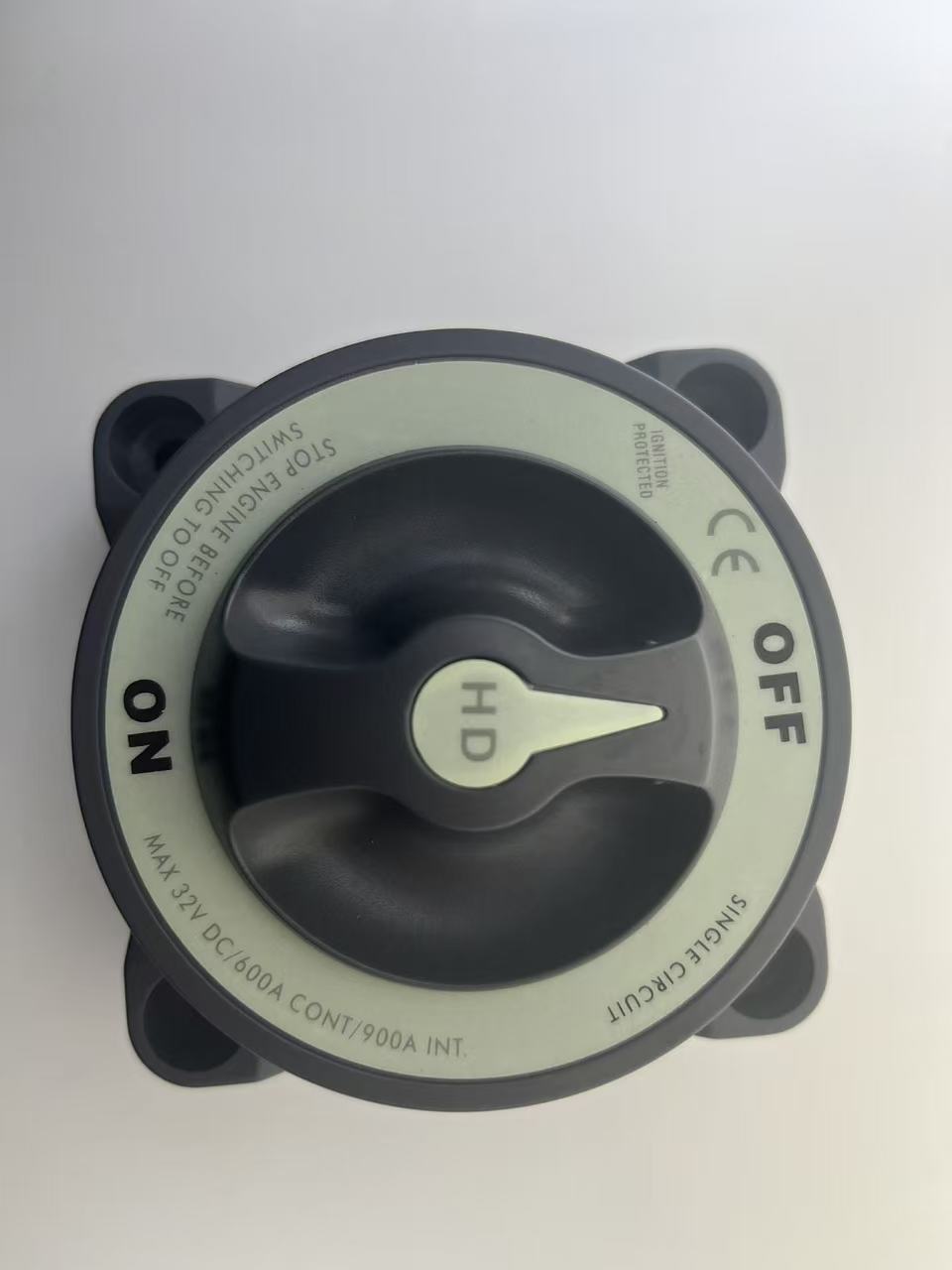

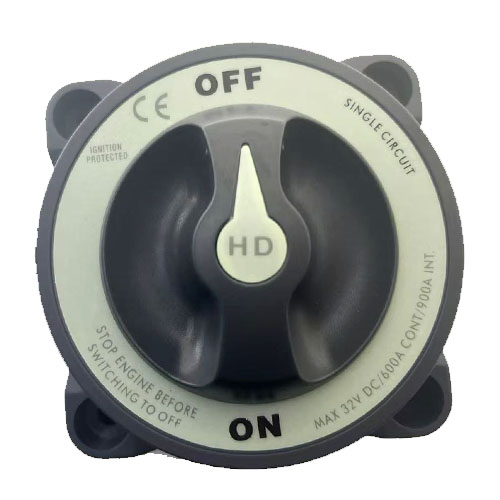

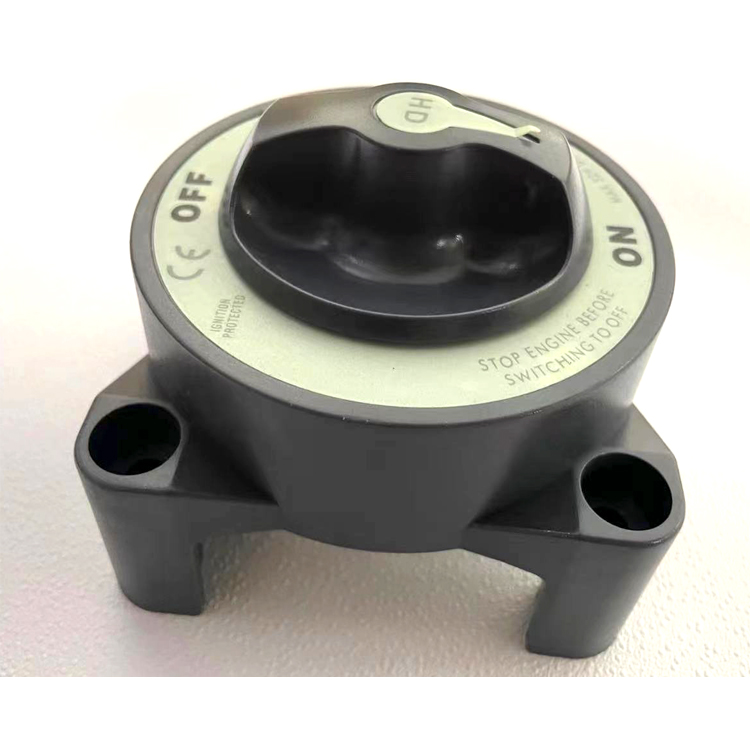

3000 32V DC 600A HD-Series Heavy Duty On-Off Battery Switch Grey Color For Marine Selector Switch

3000 32V DC 600A HD-Series Heavy Duty On-Off Battery Switch Grey Color For Marine Selector Switch

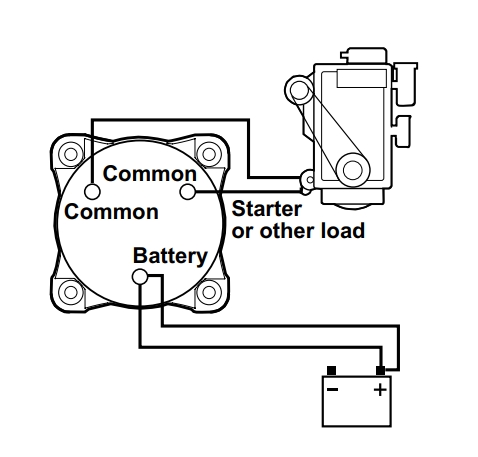

Switches a single battery to a single load group

Single circuit ON-OFF

Color: Grey

Switch Positions: 2

Battery Combine: No

Alternator Field Disconnect: No

Maximum Voltage: 32V DC

Continuous Rating: 600A

Intermittent Rating(5 mins): 900A

Cranking Rating 30 sec: 1750A

Stud Material: Tinned Copper

Terminal Stud Torque: 220 in-lb (24.86 Nm)

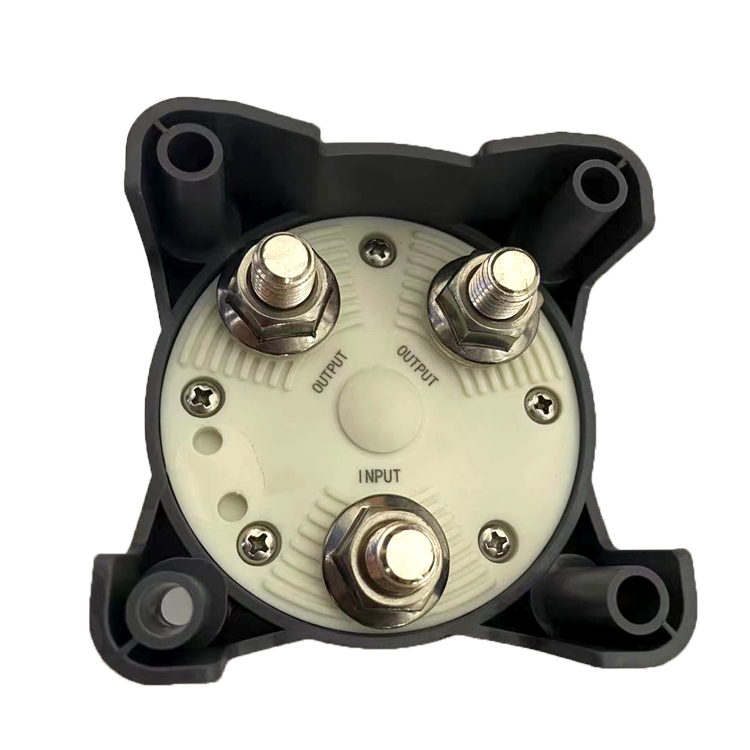

Battery Inputs: 1

Cable Clearance For 4/0 AWG Cables: 1.10in (27.94 mm)

Cable Quantity to Meet Ratings: two cables

Cable Size to Meet Ratings: 4/0 AWG (120mm²)

Mounting Holes: Accept 1/4''(M6) Screw

Terminal stud size: 1/2'' (M12)
