11001 32V DC 350A e-Series Selector 3 Position Battery Switch with AFD For Marine

11001 32V DC 350A e-Series Selector 3 Position Battery Switch with AFD For Marine

Switches a single battery to a single load group

Selector 3 Position

Color: Red

Switch Positions: 3

Battery Combine: No

Alternator Field Disconnect: Yes

Maximum Voltage: 32V DC

Continuous Rating: 350A

Intermittent Rating(5 mins): 600A

Cranking Rating 30 sec: 1200A

Stud Material: Tinned Copper

Terminal Stud Torque: 140 in-lb (15.82 Nm)

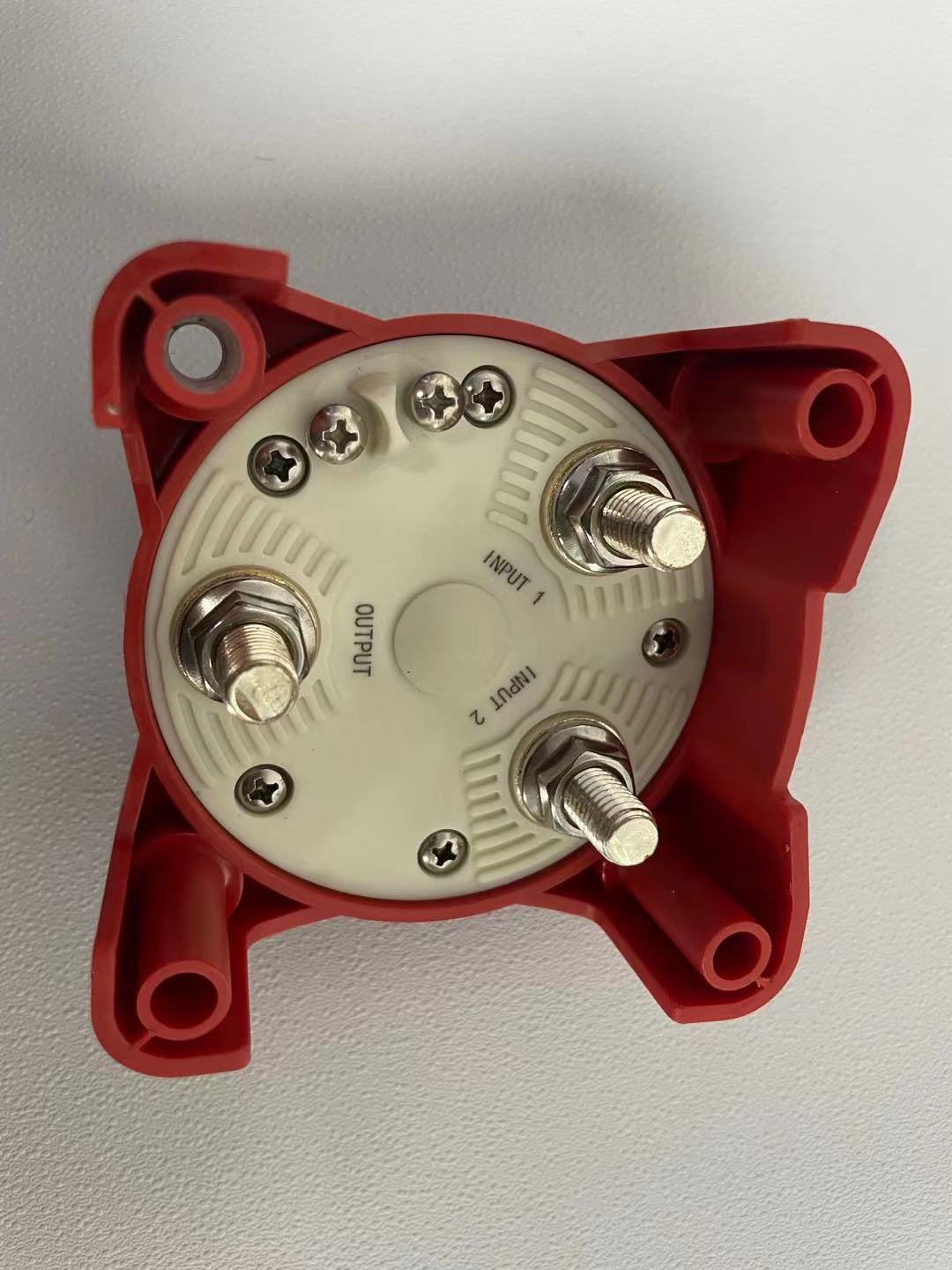

Battery Inputs: 2

Cable Clearance For 4/0 AWG Cables: 1.10in (27.94 mm)

Cable Size to Meet Ratings: 4/0 AWG (120mm²)

Mounting Holes: Accept 1/4''(M6) Screw

Terminal stud size: 3/8''-16 (M10)
