3003 32V DC 500AHD-Series Heavy Duty Selector Battery Switch with AFD Grey Color For Marine Selector Switch

3003 32V DC 500AHD-Series Heavy Duty Selector Battery Switch with AFD Grey Color For Marine Selector Switch

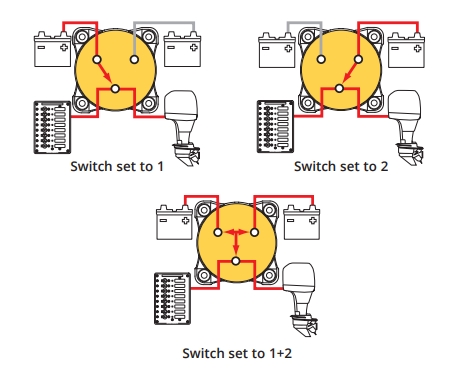

Switches isolated battery banks to all loads or combines battery banks to all loads

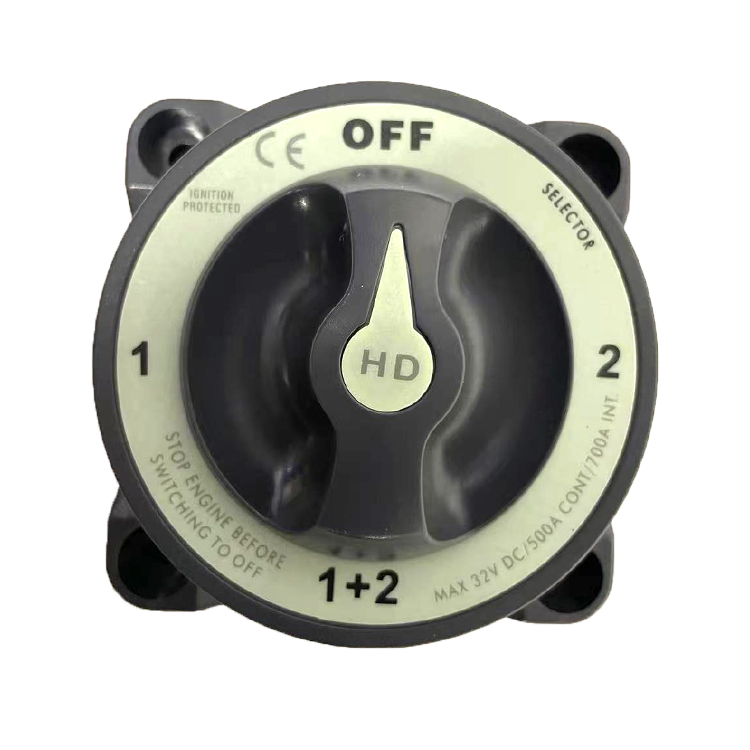

Selector 4 position

Color: Grey

Switch Positions: 4

Battery Combine: Yes

Alternator Field Disconnect: Yes

Maximum Voltage: 32V DC

Continuous Rating: 500A

Intermittent Rating(5 mins): 700A

Cranking Rating 30 sec: 1600A

Stud Material: Tinned Copper

Terminal Stud Torque: 220 in-lb (24.86 Nm)

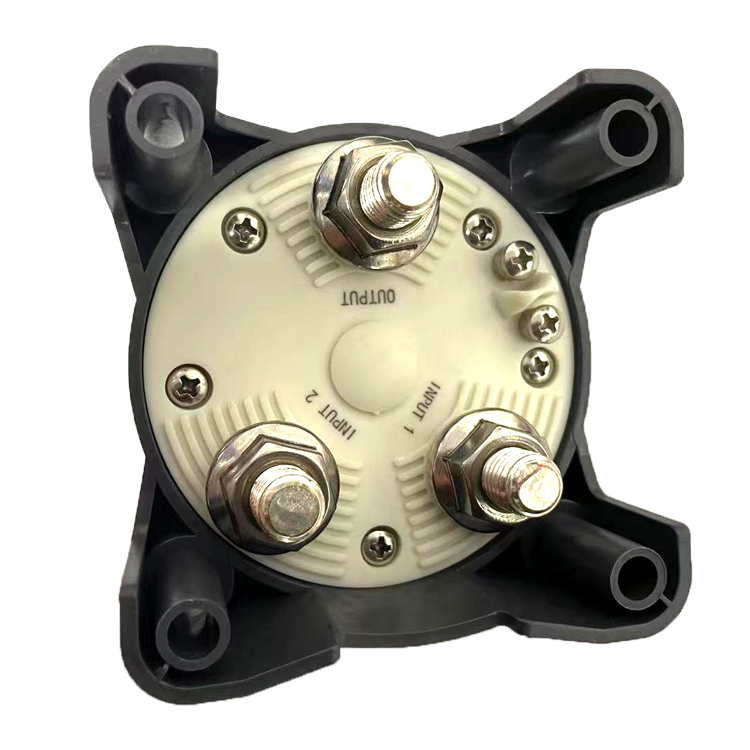

Battery Inputs: 2

Cable Clearance For 4/0 AWG Cables: 1.10in (27.94 mm)

Cable Quantity to Meet Ratings: two cables/ terminal

Cable Size to Meet Ratings: 4/0 AWG (120mm²)

Mounting Holes: Accept 1/4''(M6) Screw

Terminal stud size: 1/2'' (M12)
