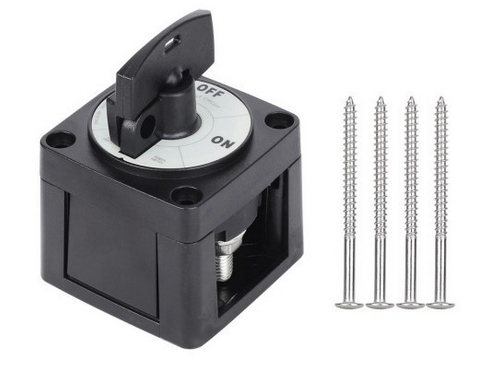

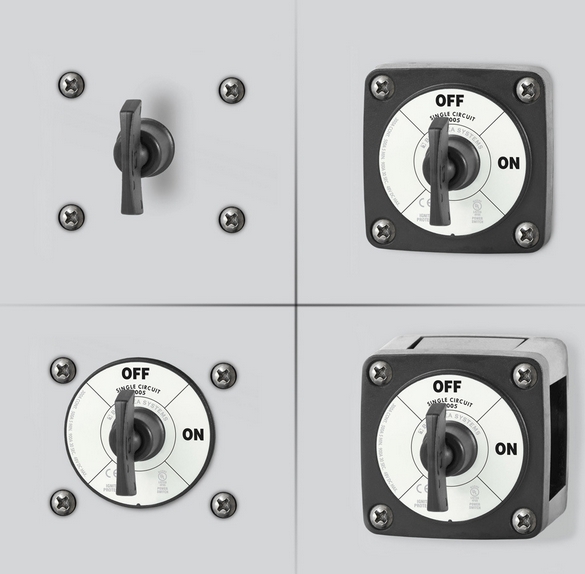

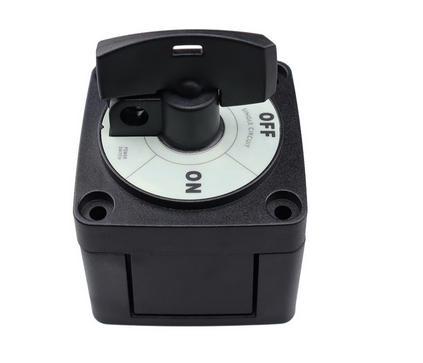

Single Circuit ON-OFF with Locking Key Black Color

300 Amps continuous rating for outboards and small gasoline or diesel engines

• Tin-plated copper studs for maximum conductivity and corrosion resistance
• Studs accept 3/8" (M10) ring terminals
• 7/8" (22 mm) stud length accepts multiple cable terminals
• One-piece stainless flange nuts ensure safe and secure connections
• Isolating cover protects rear contacts
• Breakout tabs allow wire access in any direction

Single Circuit ON-OFF

Color: Black
Maximum Voltage: 48V DC
Stud Size: 3/8"
Continuous Rating: 300A
Intermittent Rating: 500A
Cranking Rating 30 sec: 900A
Stud Material: Tinned Copper
Stud Torque: 120 in-lb (13.56 Nm)
