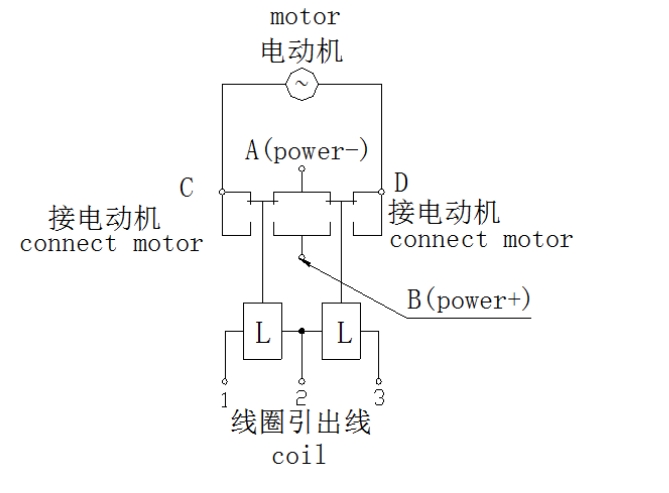

contact form |
Two group conversion |
|
Contact material |
Silver alloy |
|
Contact load (resistive load) |
200A 12VDC 200A 250VAC |
|
Withstand overload current |
560A/10S |
|
Coil rated voltage |
12、24、36、48、60（etc） |
|
contact resistance |
Max. 20mΩ(initial) |
|
insulation resistance |
Min. 100MΩ at 500VDC |
|
Dielectric Strength |
1000VAC 50 HZ/60 HZ (1 minute) Leakage current less than 1mA |
|
Pull in time |
Max. 50mS |
|
Release time |
Max. 50mS |
|
pull-in voltage (DC V) |
≤70% US |
|
Release voltage (DC V) |
5～30% US |
|
Operating ambient temperature |
-25℃~+60℃ |
|
Storage temperature |
-40℃~+65℃ |
|
relative humidity |
20%~90% RH |
|
Mechanical life |
≥200000 次 |
|
class of pollution |
III |
|
Working system |
Short time working system |
|
Vibration |
（10～200）Hz acceleration ≤3.5g |
|
to attack |
（60） Times / minute acceleration 6g |
|

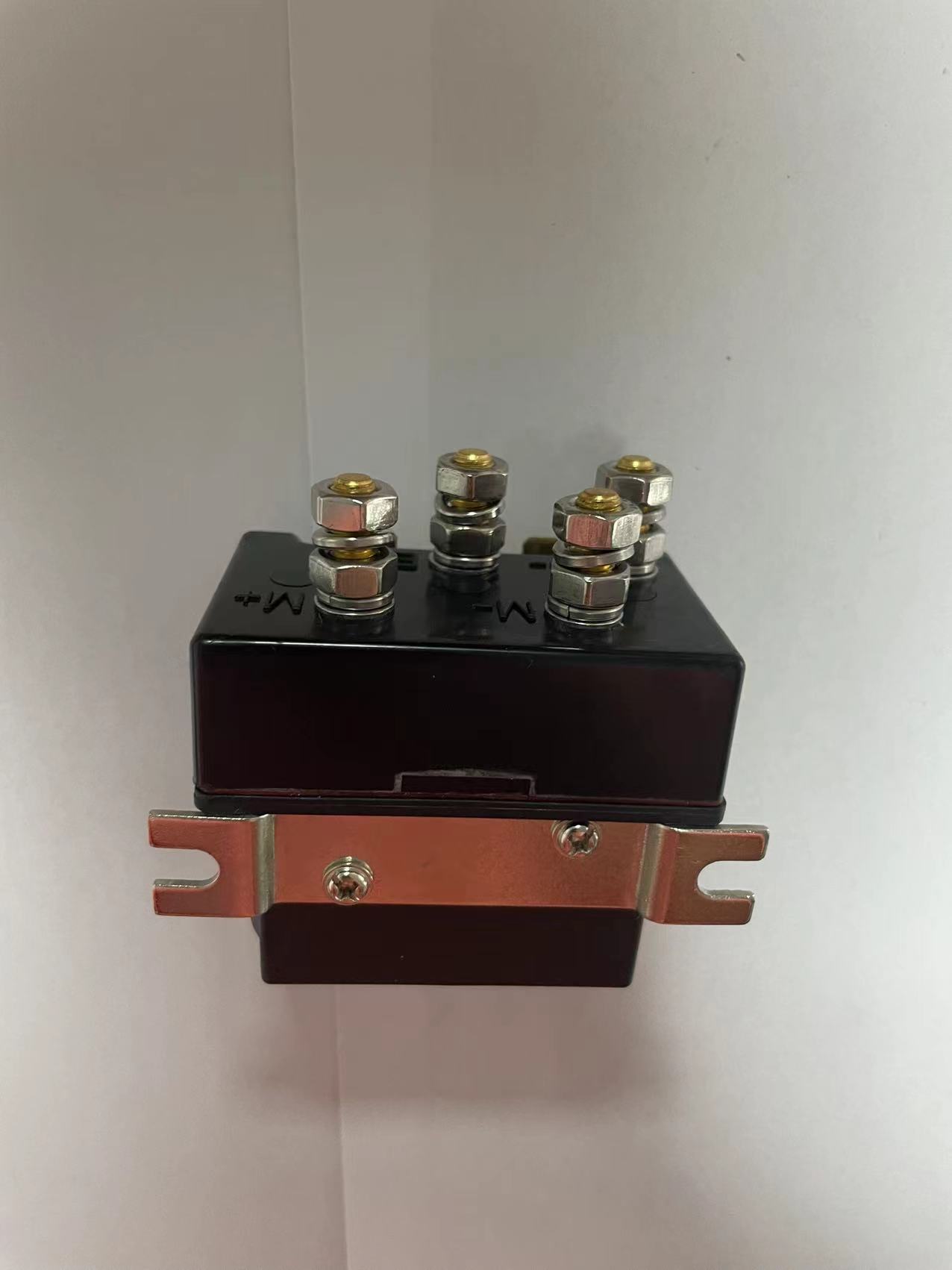

Installation direction |
Contact up and horizontal position |
