Specifications:
Voltage Max. Operating 32V DC
Amperage Max. Operating 100A per block / 30A per circuit
Fuse Type ATO or ATC
Fuses Bus Material : Tin-Plated Copper

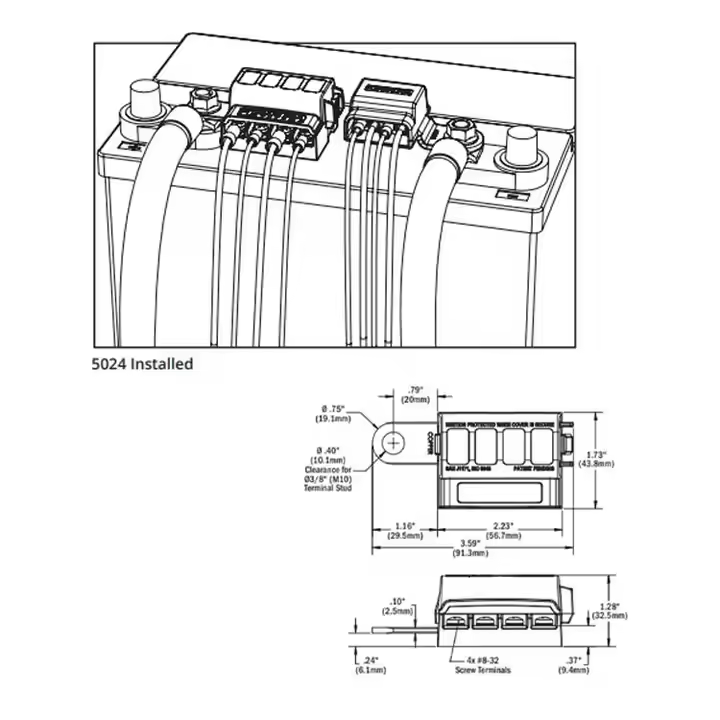

Mounting Thru-hole Clearance for 3/8" [M10] stud
Screw Terminal #8-32 Screws

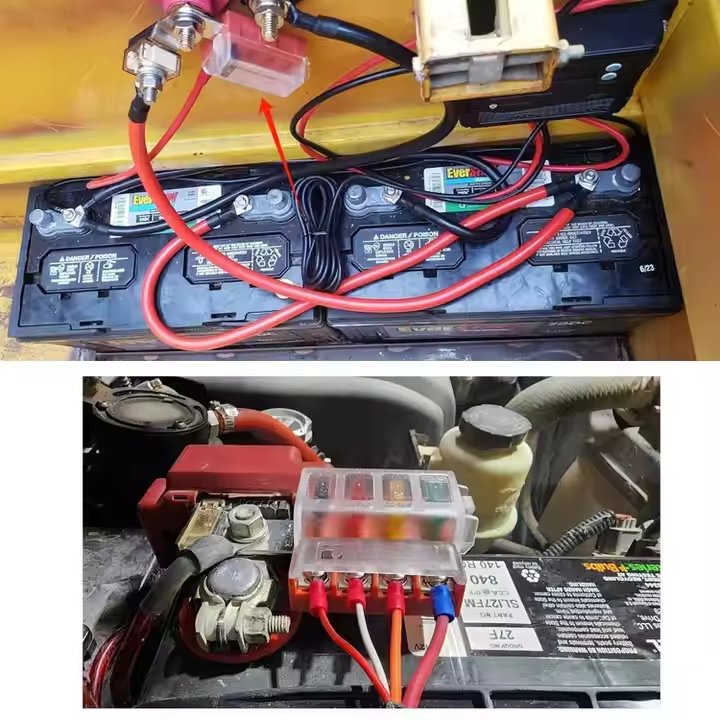

Easily add 4 fused circuits to the terminal of a battery. Provides power to new accessories in your boat or vehicle;

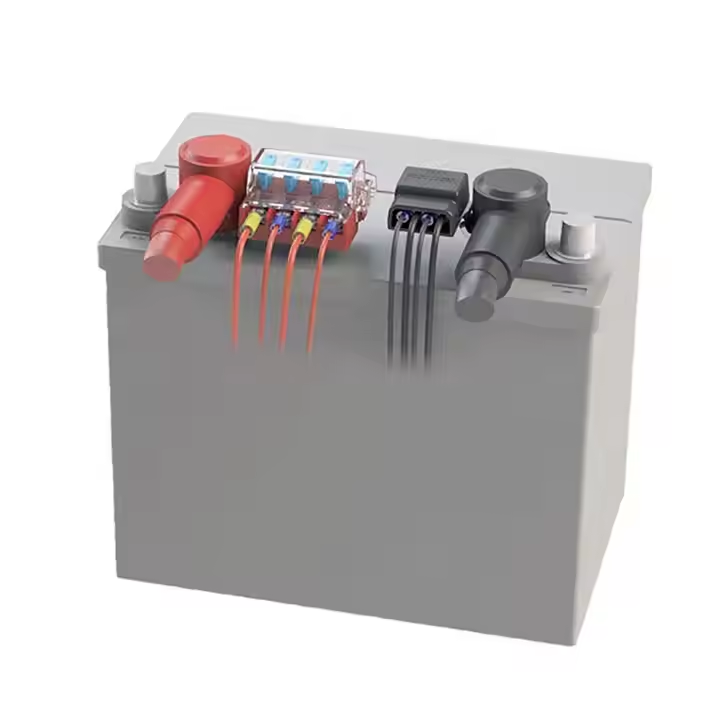

• Mounts on the battery terminal stud;
• Screw terminals for securing wires;
• Nylon insulated ring terminals included for each screw terminal;
• Insulating cover meets ABYC/USCG insulation requirements;
• Ignition protected - for use in a gasoline engine compartment;

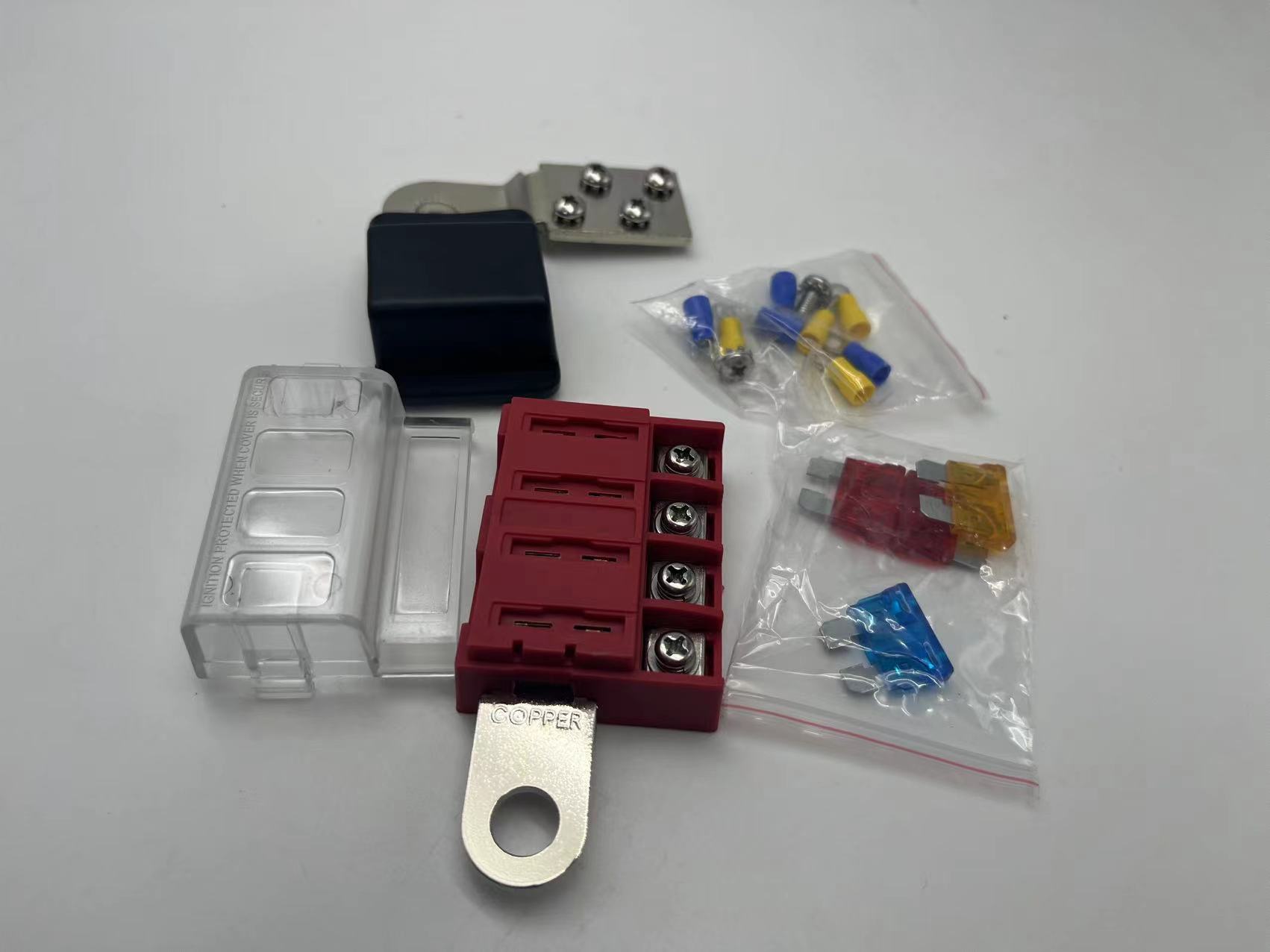

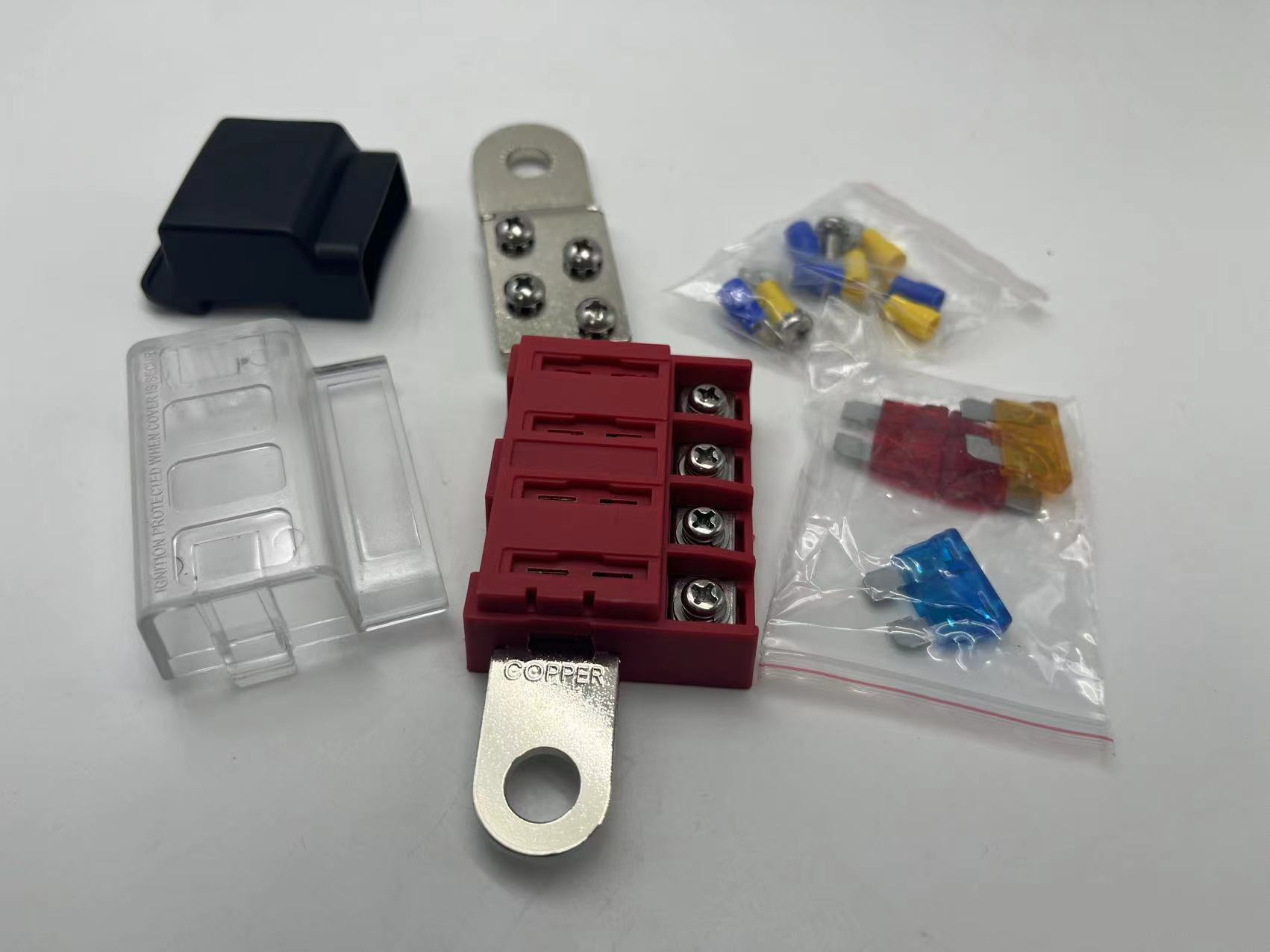

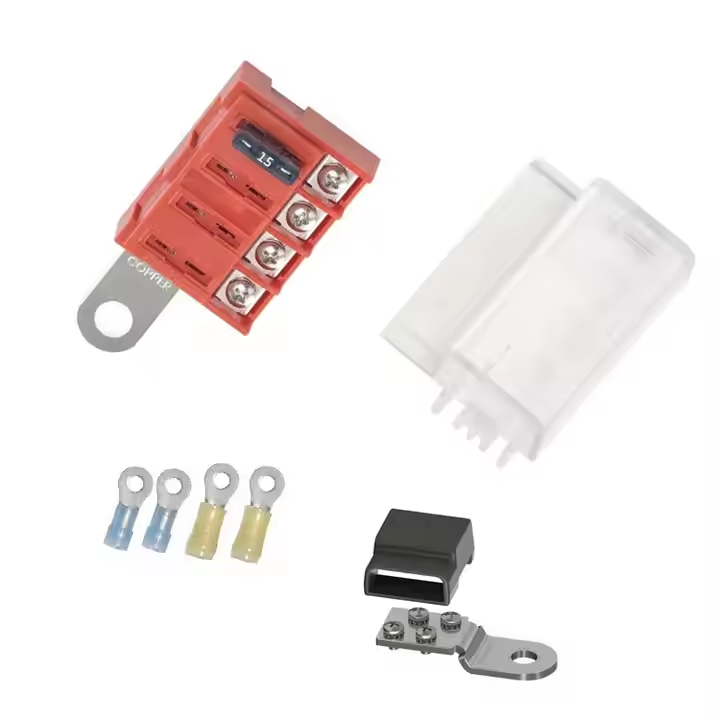

• Includes four 16-14 AWG and four 12-10 AWG Nylon insulated ring terminals;
• Includes four write-on circuit labels;
• Small format standard and custom labels available
