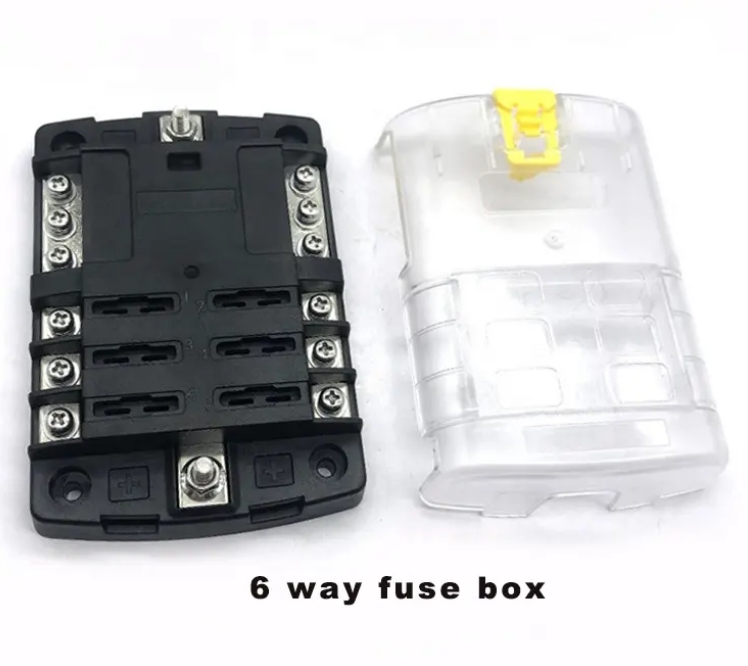

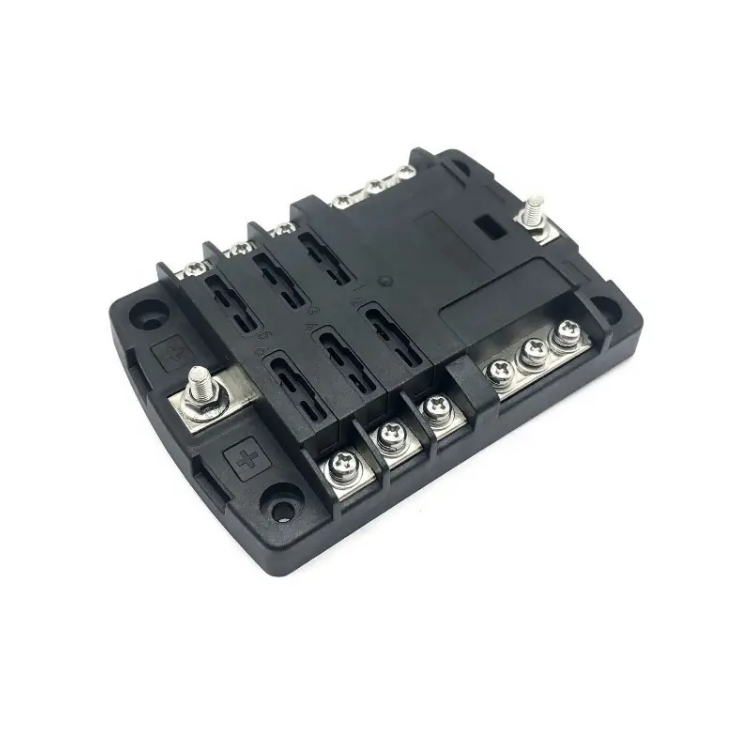

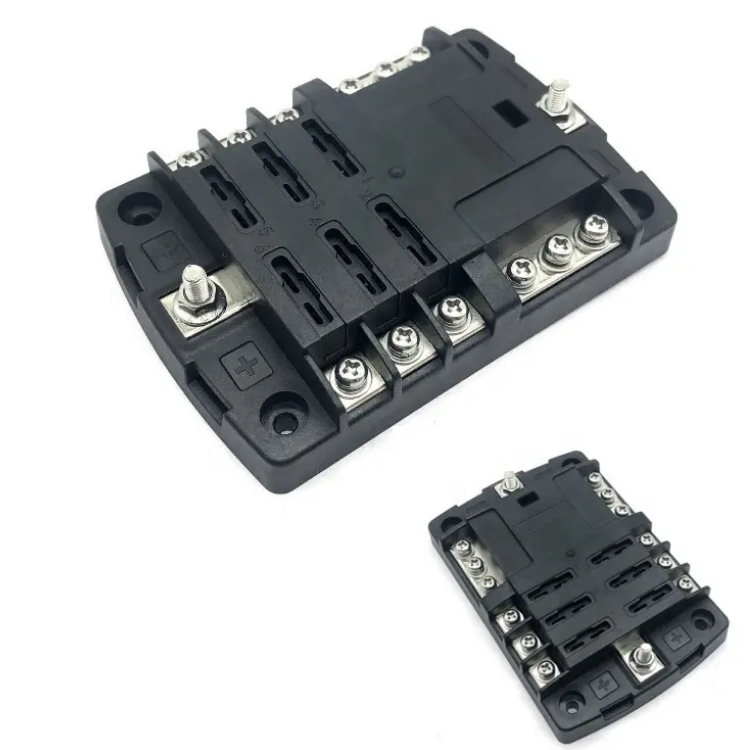

Positive distribution bus with #10-32 stud;
Can be used for 24-hour circuits;
Models available with or without a cover;
Cover satisfies ABYC/USCG requirements for insulation, incorporates an easy to open push button latch providing easy access to fuses, storage for two spare fuses, Small Format Labels for circuit identification;
Fuse blocks with covers include 20 write-on circuit labels;
Tin-plated copper buses and fuse clips;
Accepts ring or snap fork type terminals;
Circuits: 6
Maximum Amperage: 100A per block, 30A per circuit
Maximum Voltage: 32V DC
Mounting: #8 Screw (M4)
Negative Bus: #10-32 Stud
Positive Bus: #10-32 Stud
Recommended Torque: 24 in-lb (2.71 N·m)
Screw Terminal Torque: 18 in-lb (2.03 Nm)
Screw Terminal Type: #8-32 Screws with captive star lock washer
