High quality material, long service life, safe and reliable. Simple and reasonable structure, easy to install and use Offer the function of emergency power cut protection.
Working current 250 A,rated current DC 12-250 V,wide range of rated voltage
For electric forklift sightseeing bus new energy electric vehicle and other electric devices matching use
Material: Plastic+Metal
Continuous Rating: 275 Amps DC
Intermittent Rating: 455 Amps DC
Cranking Rating:1250 Amps DC
Voltage Rating: 12-48 Volts DC
Operation: On/Off

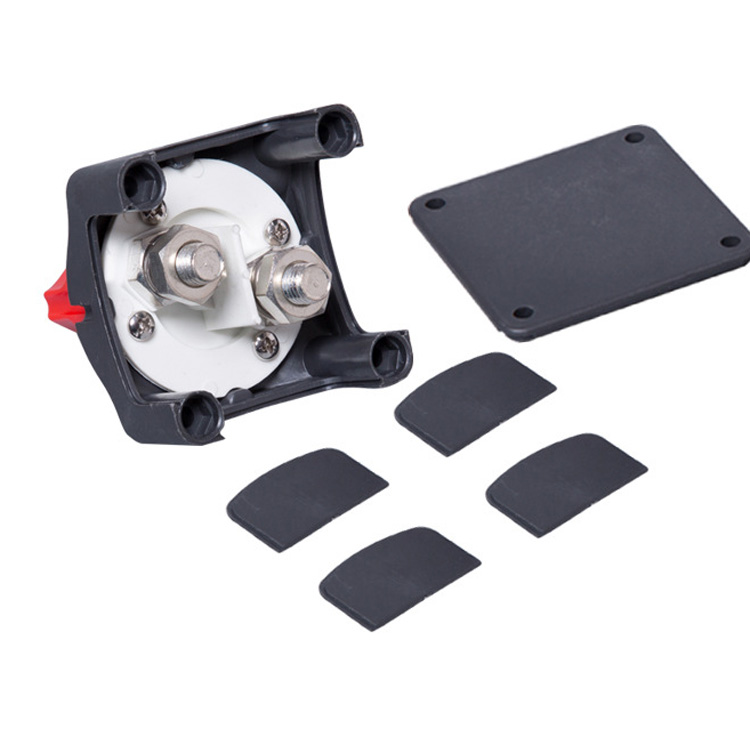

Mounting : Recessed or SurfaceIgnition Protected

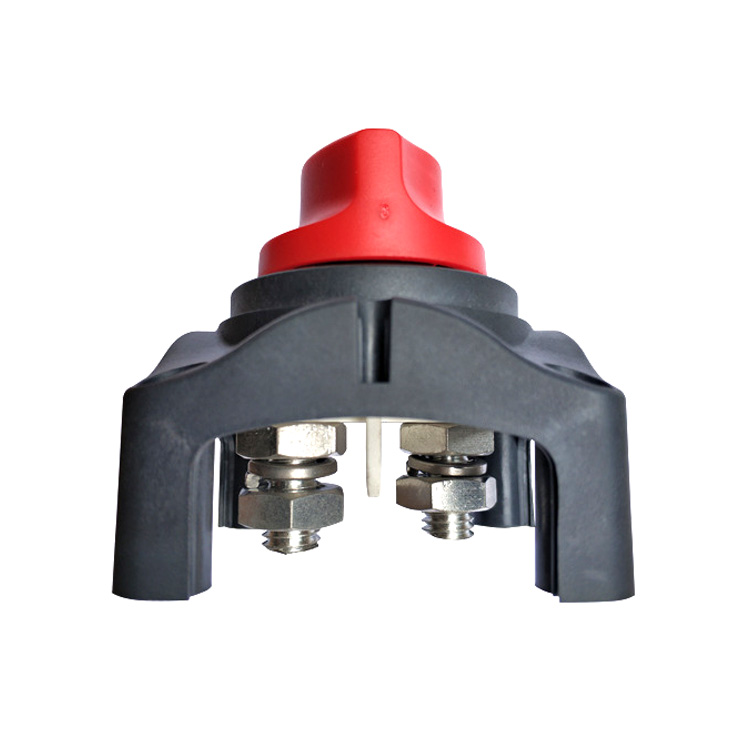

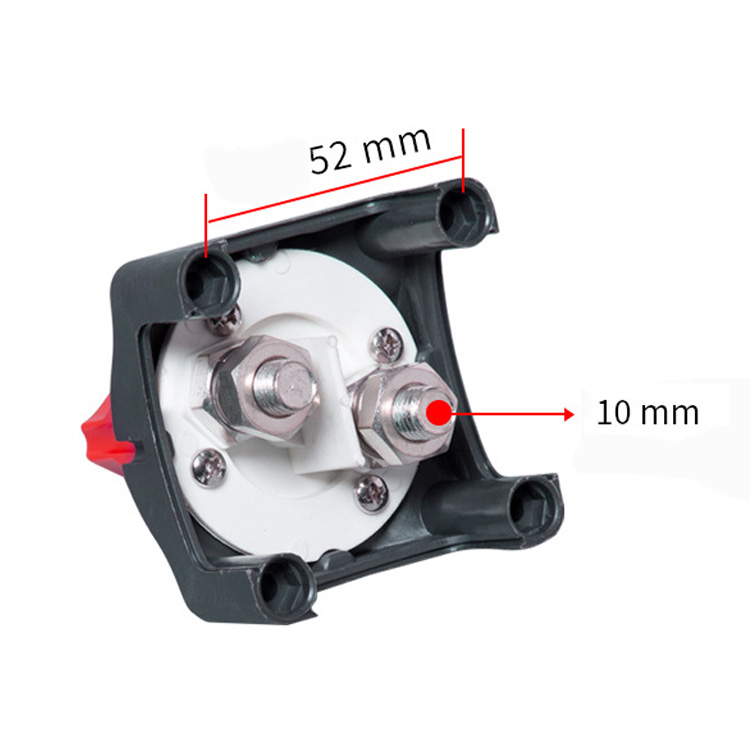

Termination Stud size: 2x10mm(3/8 inch)

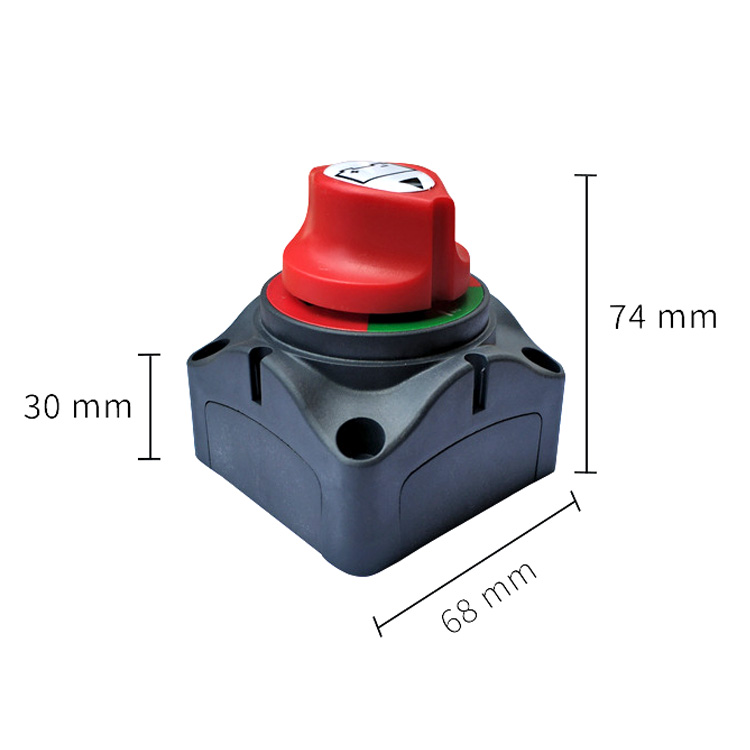

Dimensions: 69X69X75H mm(2.75x2.75x3h inch)

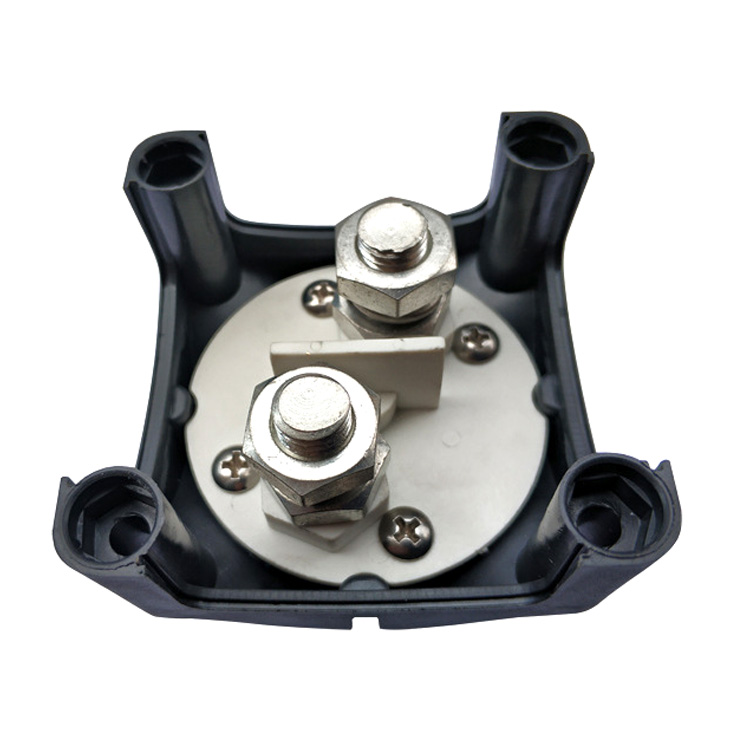

Tin plated copper studs and nuts
CE: available
ROHS: available
