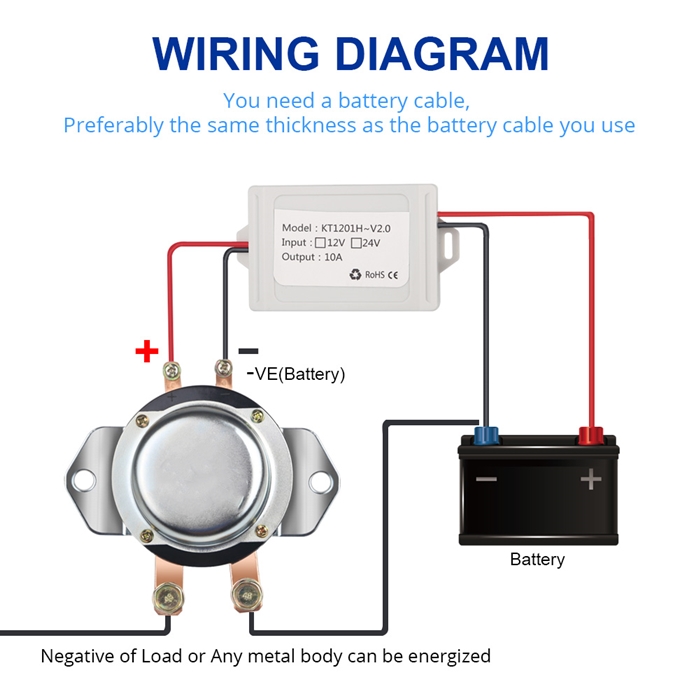

1.Please prepare a battery cable,As the cable of the car is different.We don't send the battery wire in the parcel .please understand.
2.This switch support manual control. If the remote is lost or the power is out of , you can press the button , then battery connect
3.The remote control can control 50m

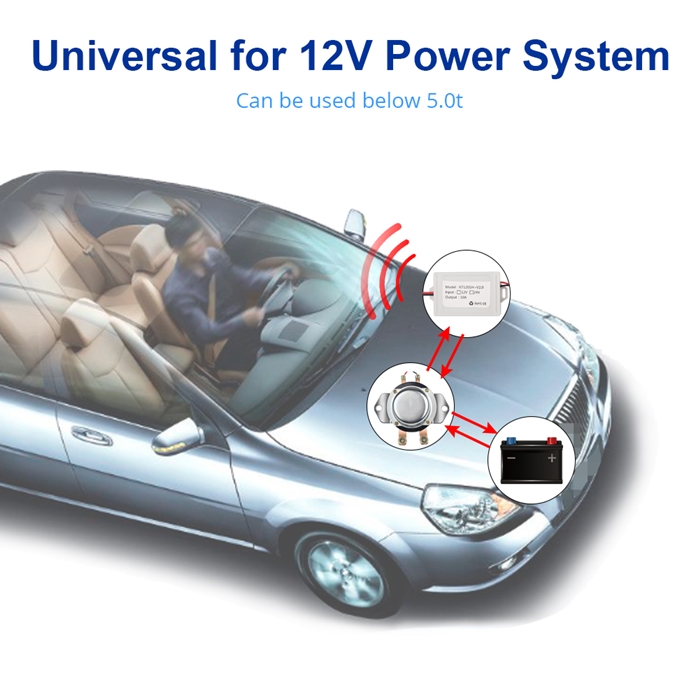

4.Fit for most Car
Specification:
Switching Voltage:12V/24V

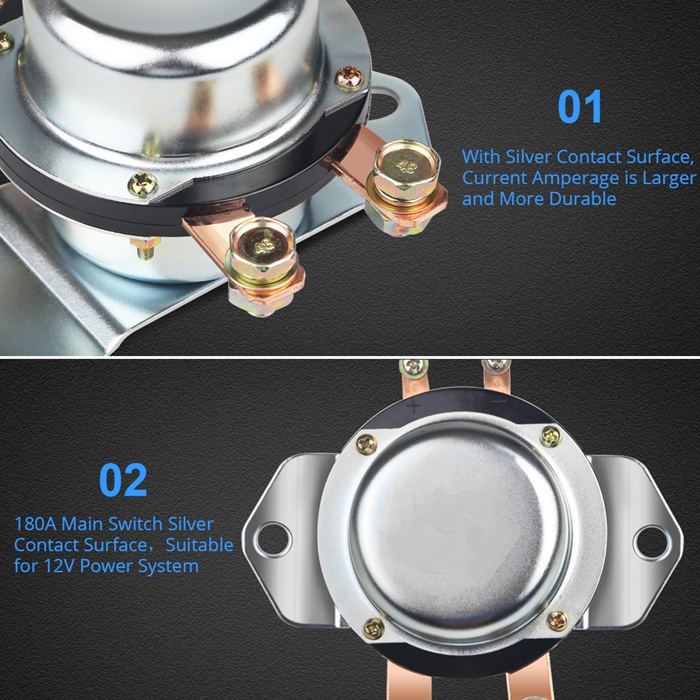

Material Type: Copper
Special Features:remote control battery switch
With remote:Yes
function: remote manual control
Features:
Rated Voltage: DC 12V/24V
Current: 180A
12v Working Voltage 10-15V
24VWorking Voltage 20-29V
Lifetime of Use: 100,000 Times
Remote Receiver Standby Current: 0.0085A
Package Includes:

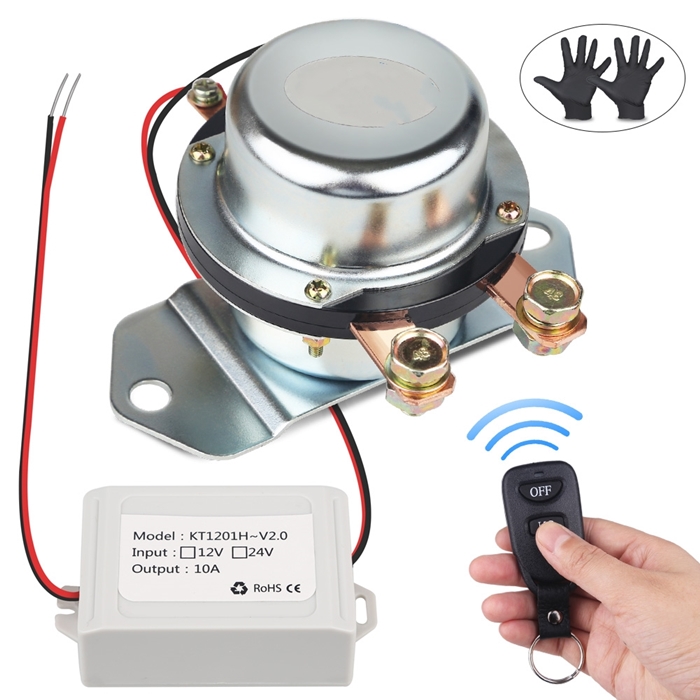

1 x Car Battery Switch
Switching power consumption: 0.008 amps during standby, very power-saving, power consumption can be neglected, when the main power supply is energized, the power consumption is 0.8 amps, 9.6w, which is equivalent to the power consumption of 1 turn signal. When leaving the car, it should be broken. Turn on the main power, so the car also has anti-theft function. The indicator light on the controller is constant. You can grasp whether the working status of the remote control switch is normal. You don't need to consider the power consumption. The new battery can be placed for one month and can also be fired normally.
Note:
1. After installation, the remote control electromagnetic switch will increase the power consumption of the battery. When leaving the vehicle, the remote control should be used to turn off the total power supply in time to avoid the battery being depleted due to excessive power consumption and unable to start.
2, because it is cutting off the power of the whole car, it will cause the alarm, the car computer and other power outages can not work.
3. During normal driving, do not disconnect the electromagnetic switch to avoid the increase of the generator voltage and damage the automotive electrical equipment.
4.This device is only for battery on / off, it can't start your engine
