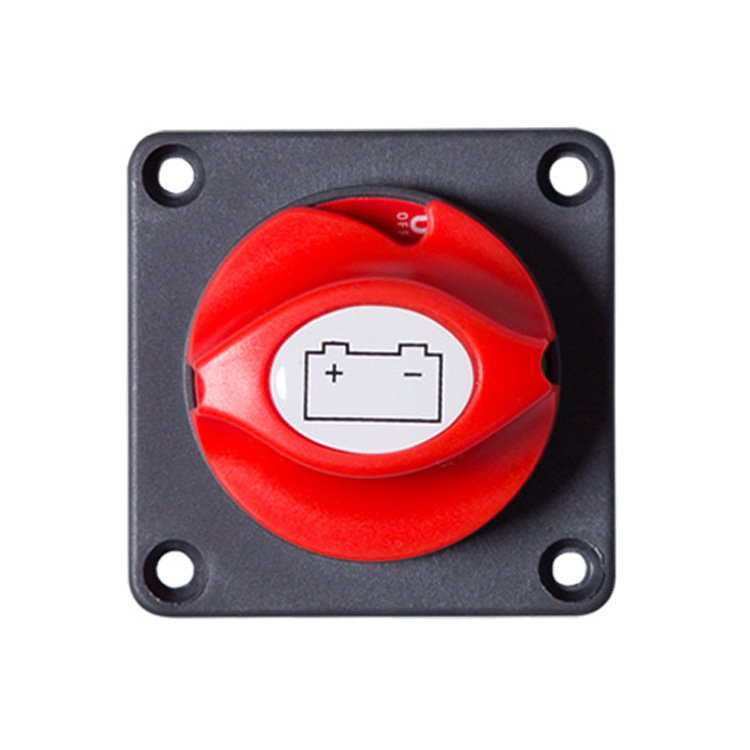

This one is specifically designed for panel mount applications. This battery switch is moulded in a high strength,
fibre reinforced plasic with high temperature performance and great resistance to chemicals that damage other plastic types.
Continuous Rating: 275 Amps DC
Intermittent Rating: 455 Amps DC
Cranking (Peak) Rating: 1250 Amps DC
Voltage Rating: 48 Volts DC
Operation: On/Off

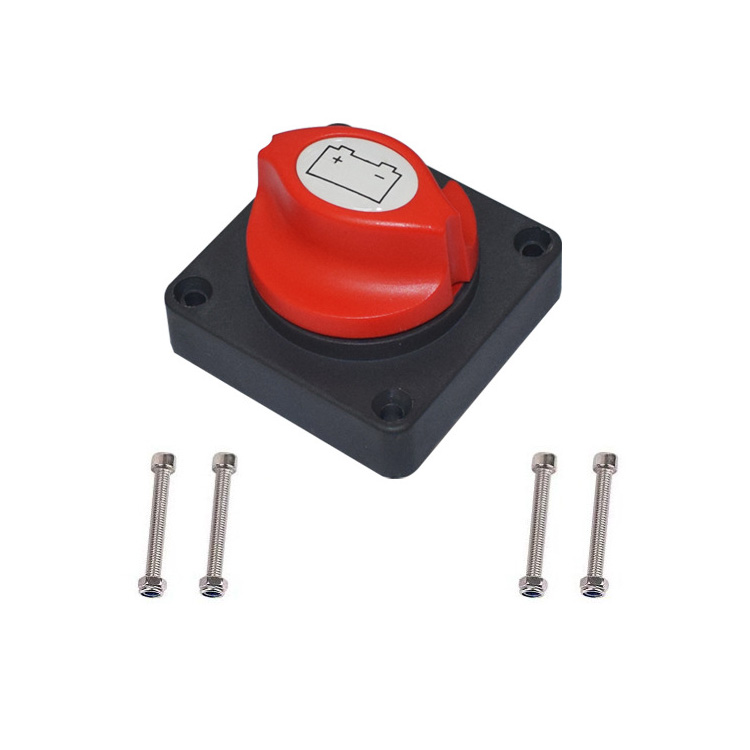

Mounting: Recessed or Surface
Ignition protected

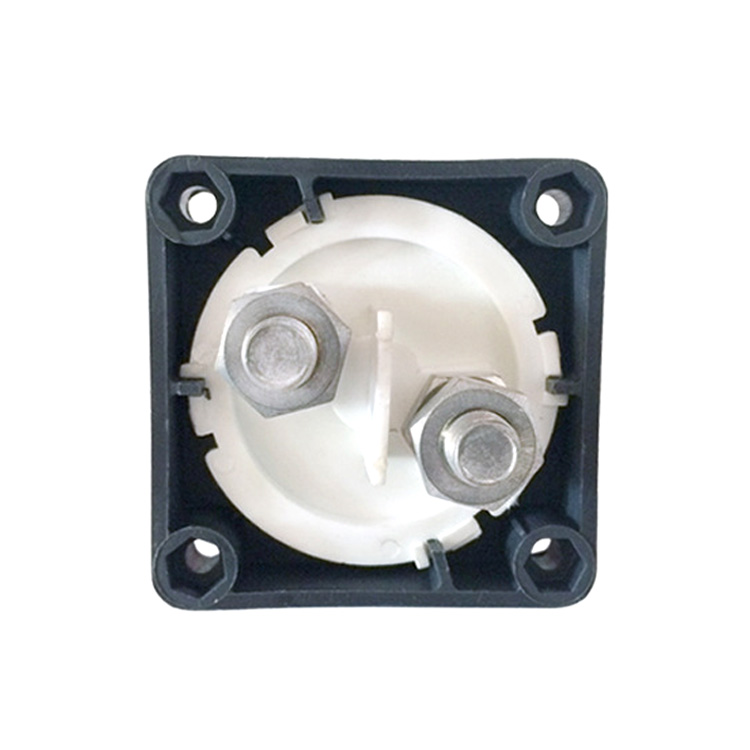

Termination Stud Size:
2 x 10 mm (3/8 inch)

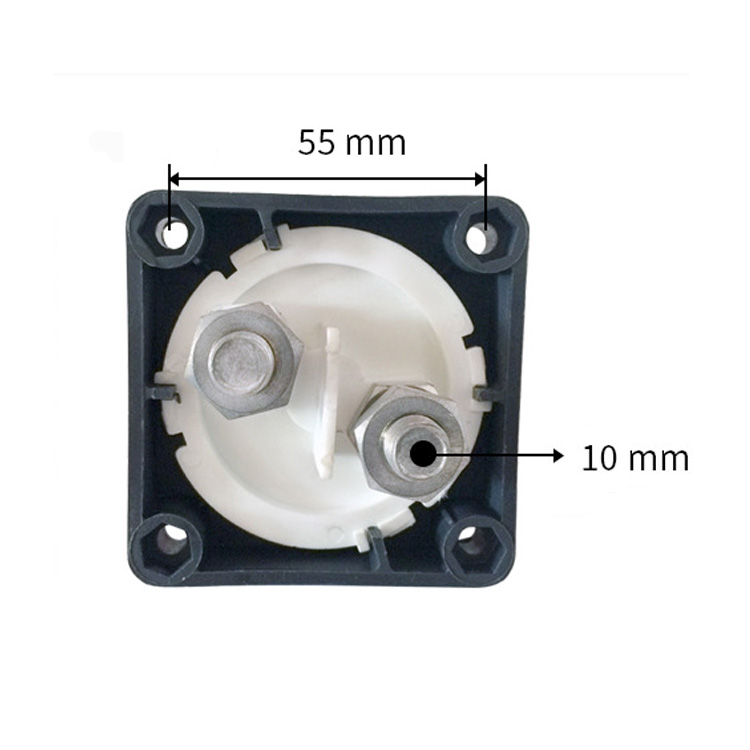

Dimensions: 69 x 69 x 75h mm (2.75 x 2.75 x 3h inches)
Tin plated copper studs and nuts

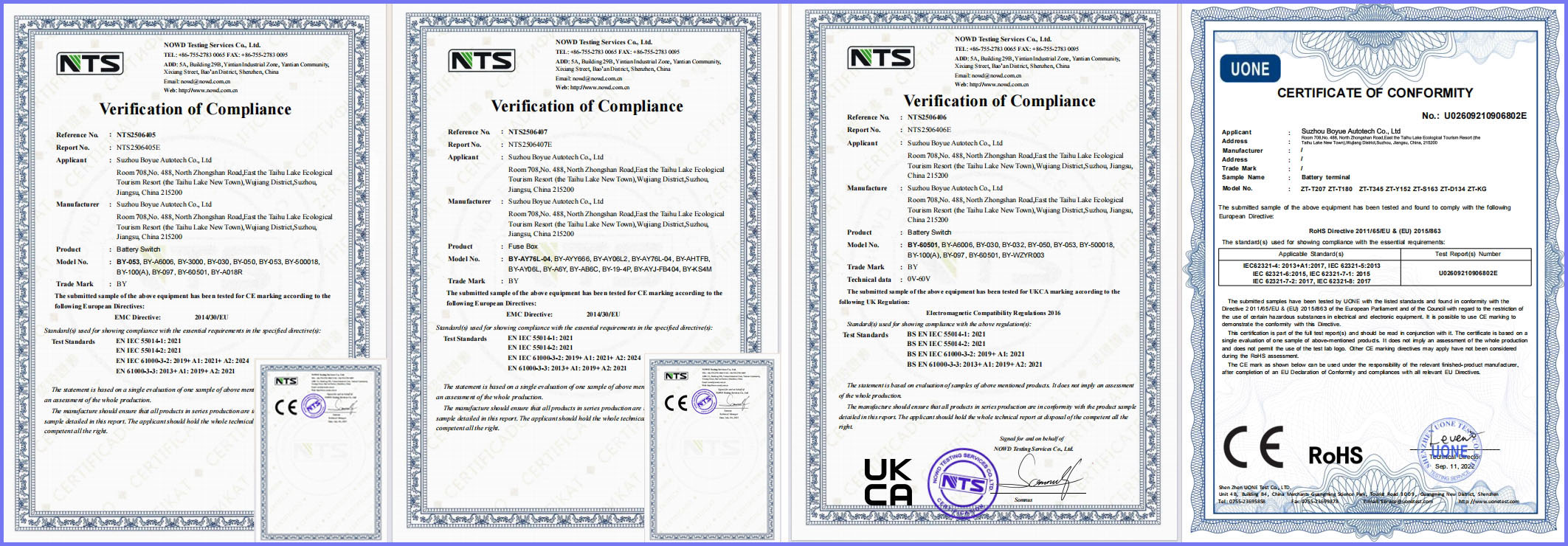

CE: available
ROHS: available
