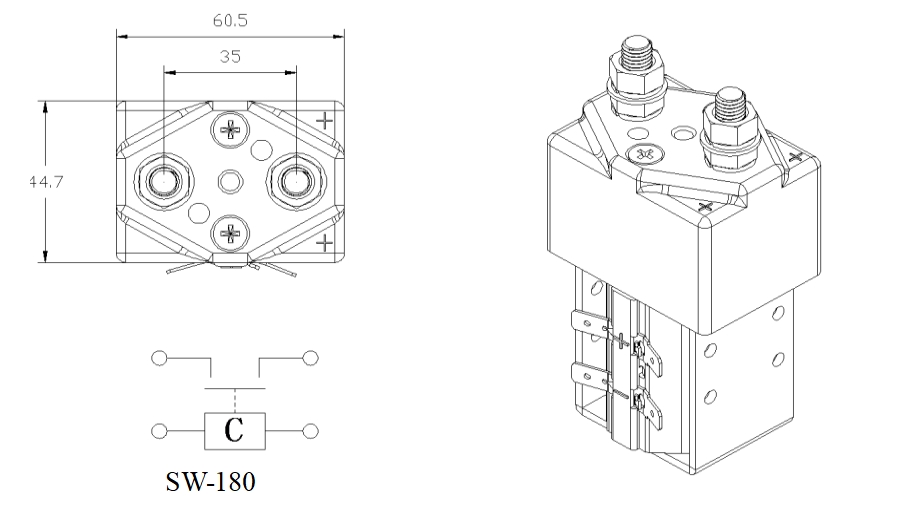

Contact form: 1D (SPST-NO)
Contact material: Silver alloy
Contact load (resistive load): 200A×60VDC（DC-1）
Contact pressure drop: ≤80mV@200A
Insulation resistance: Min. 100MΩ at 500VDC
Dielectric Strength: 1000VAC 50 HZ/60 HZ (1 minute) Leakage current less than 1mA
Pulse width: / ( Only applicable to SW80M series )
Pull in time: Max. 40mSec.
Release time: Max. 40mSec.
Pull-in voltage (DC V): ≤70% US
Release voltage (DC V): ≥10% US
Operating ambient temperature: -25℃~+60℃
Storage temperature: -40℃~+65℃
Relative humidity: 20%~90% RH
Mechanical life: ≥150000 Times
Auxiliary switch: 5A/24V DC; 2A/48V DC
Minimum load of auxiliary contact: 100mA/5V
Working system: Continuous working system
Vibration: (10～200) Hz acceleration ≤3.5g
to attack: (60) Times / minute acceleration 6g
