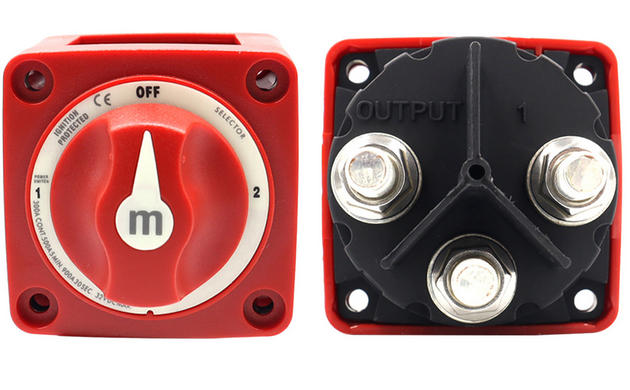

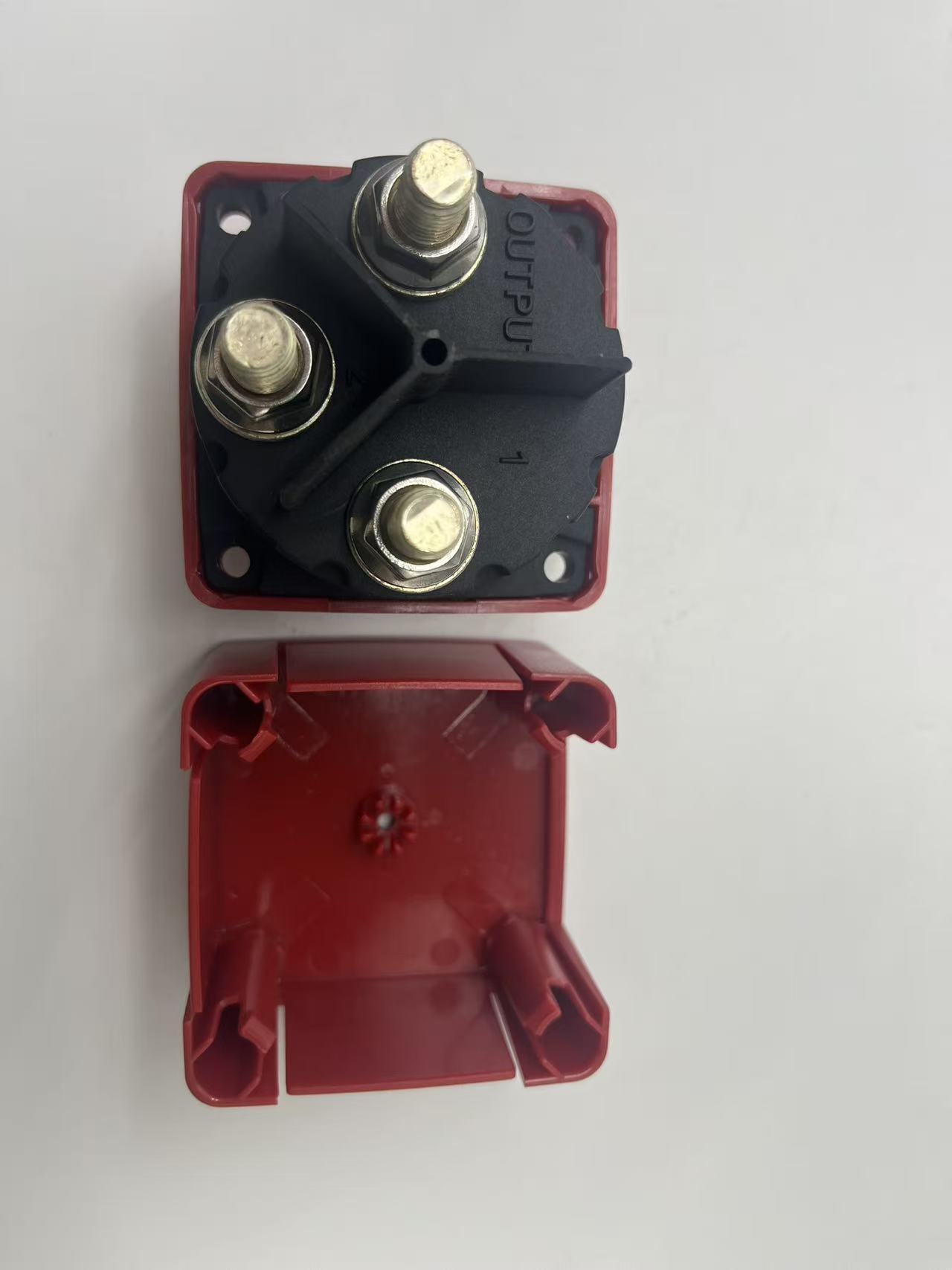

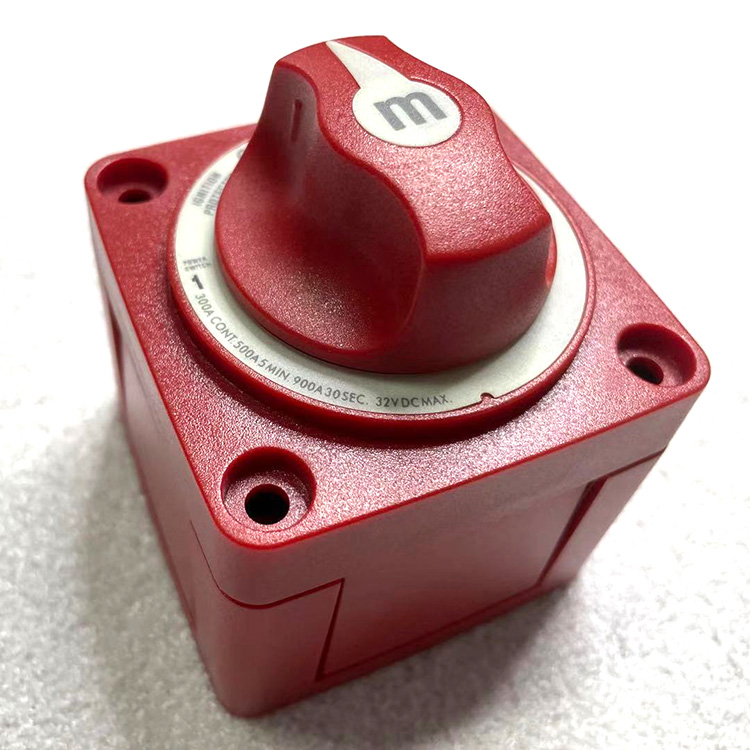

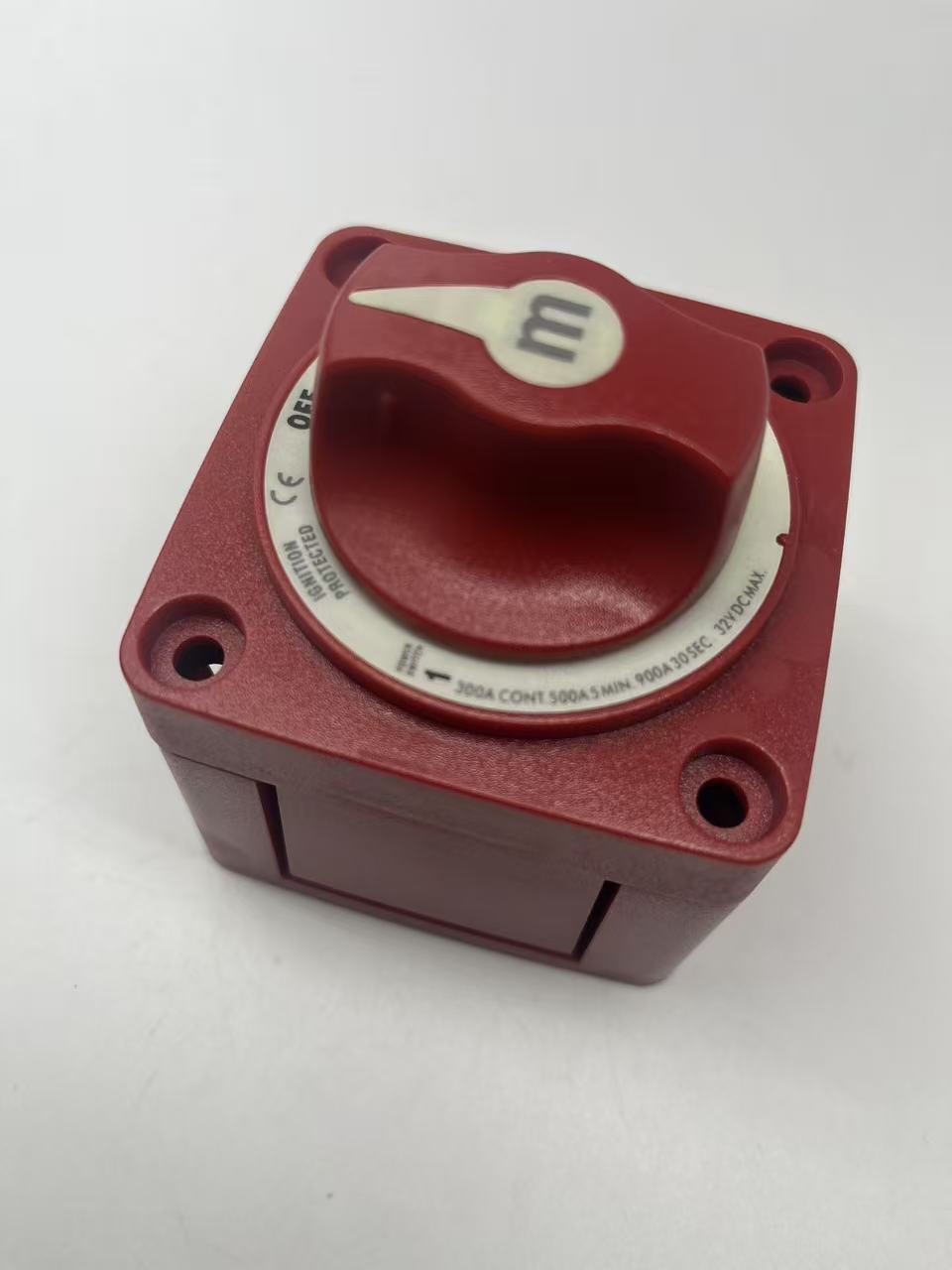

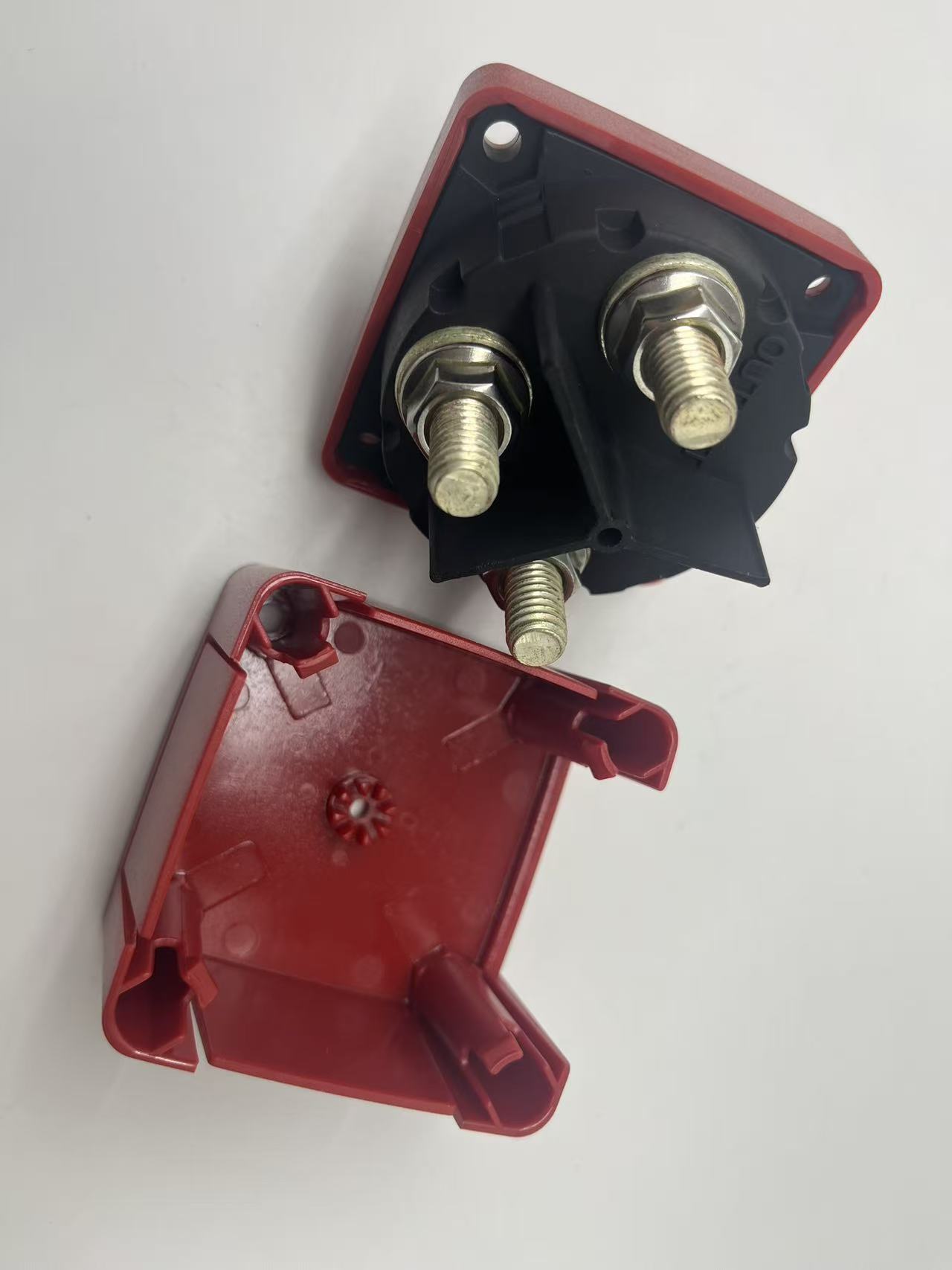

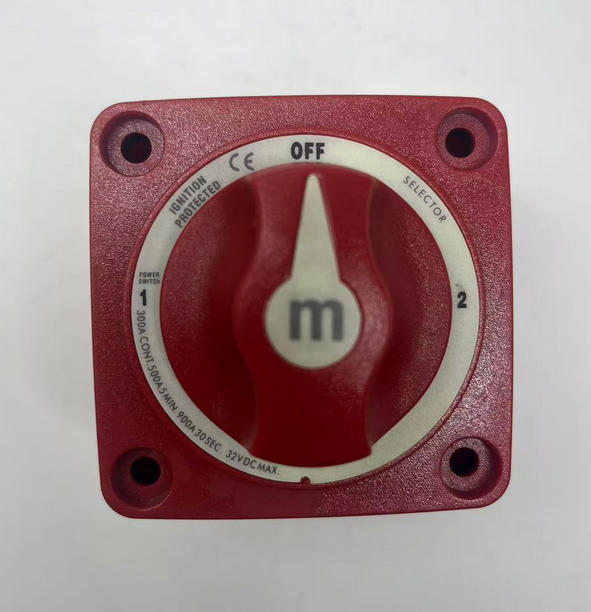

Switches a single battery to a single load group
Selector 3 Position

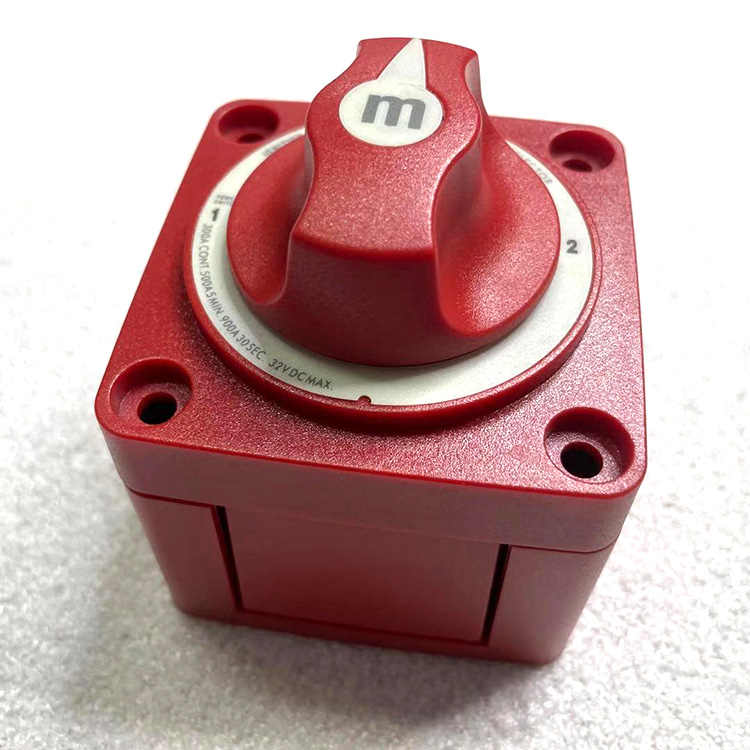

Color: Red
Switch Positions: 3
Battery Combine: No
Alternator Field Disconnect: No
Maximum Voltage: 32V DC
Stud Size: 3/8"
Continuous Rating: 300A
Intermittent Rating: 500A
Cranking Rating 30 sec: 900A
Stud Material: Tinned Copper
Terminal Stud Torque: 120 in-lb (13.56 Nm)
Battery Inputs: 2
Cable Clearance For 4/0 AWG Cables: 1.12in (28.45 mm)
Mounting Holes: Accept #10 Screw
Stud Torque: 120 in-lb (13.56 Nm)
Terminal stud size: 3/8''-16 (M10)
Cable Size to Meet Ratings: 4/0 AWG (120mm²), 4/0 AWG (130mm²)
Selector 3 Position
