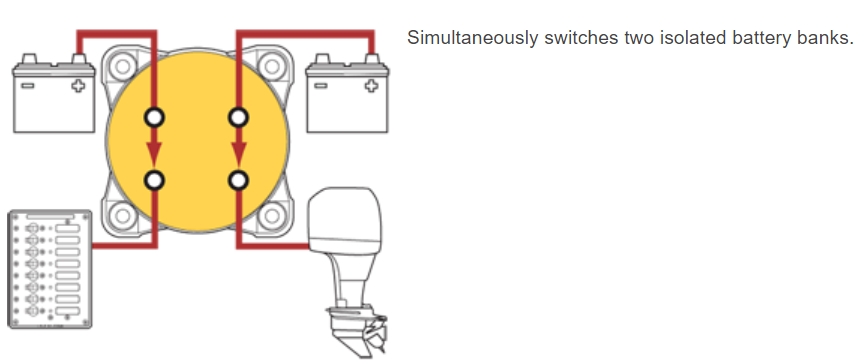

Simultaneously switches two isolated battery banks
Dual Circuit
Color: Red
Switch Positions: 2
Battery Combine: No
Alternator Field Disconnect: No
Maximum Voltage: 32V DC
Continuous Rating: 350A
Intermittent Rating(5 mins): 525A
Cranking Rating 30 sec: 700A per circuit
Stud Material: Tinned Copper
Terminal Stud Torque: 140 in-lb (15.82 Nm)
Battery Inputs: 2
Cable Clearance For 4/0 AWG Cables: 1.10in (27.94 mm)
Cable Size to Meet Ratings: 4/0 AWG (120mm²)
Mounting Holes: Accept 1/4'' (M6) Screw
Terminal stud size: 3/8''-16 (M10)
Maximum Voltage: 32V DC
Continuous Rating: 350A
Intermittent Rating(5 mins): 525A
Cranking Rating 30 sec: 700A per circuit
