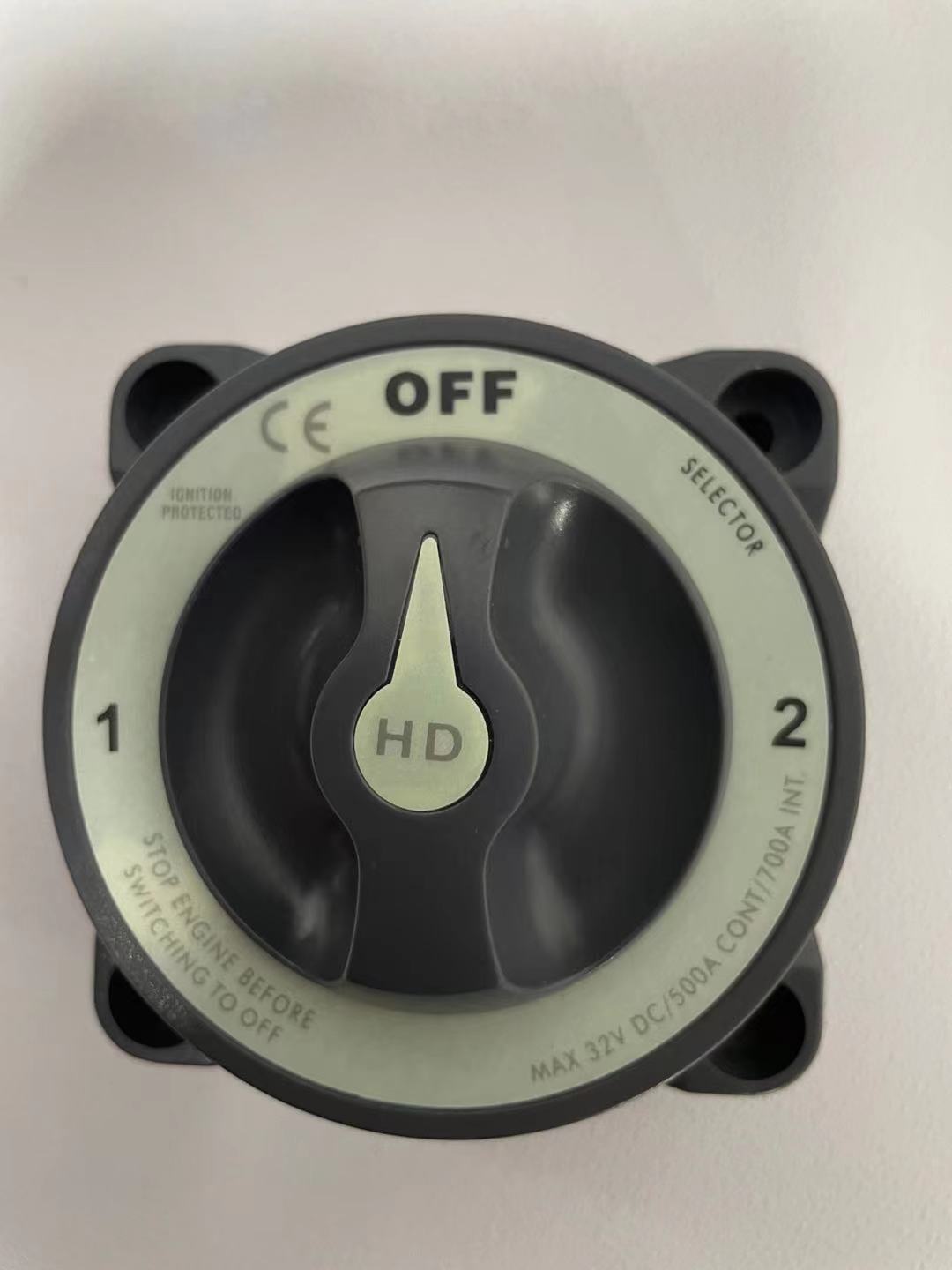

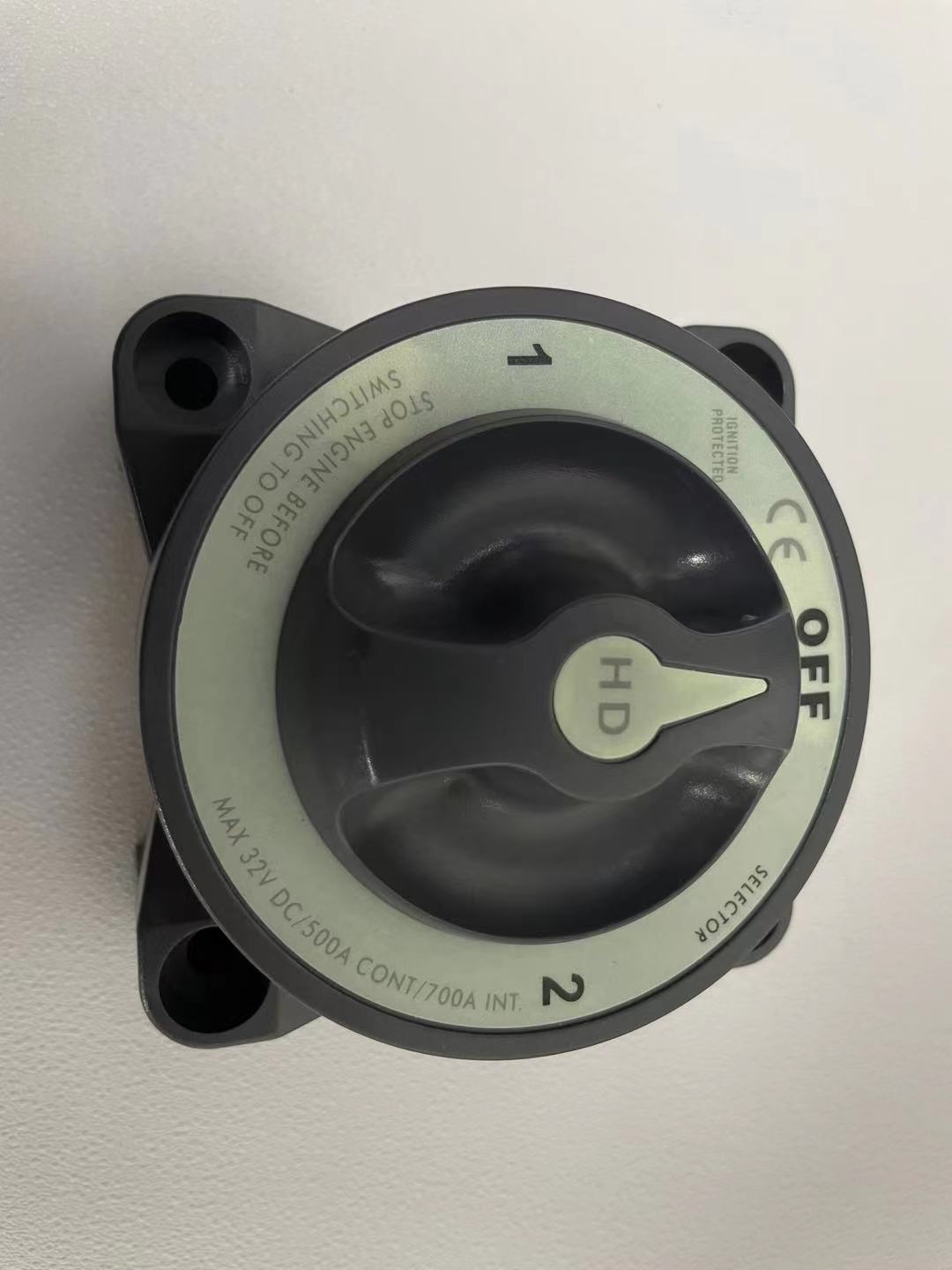

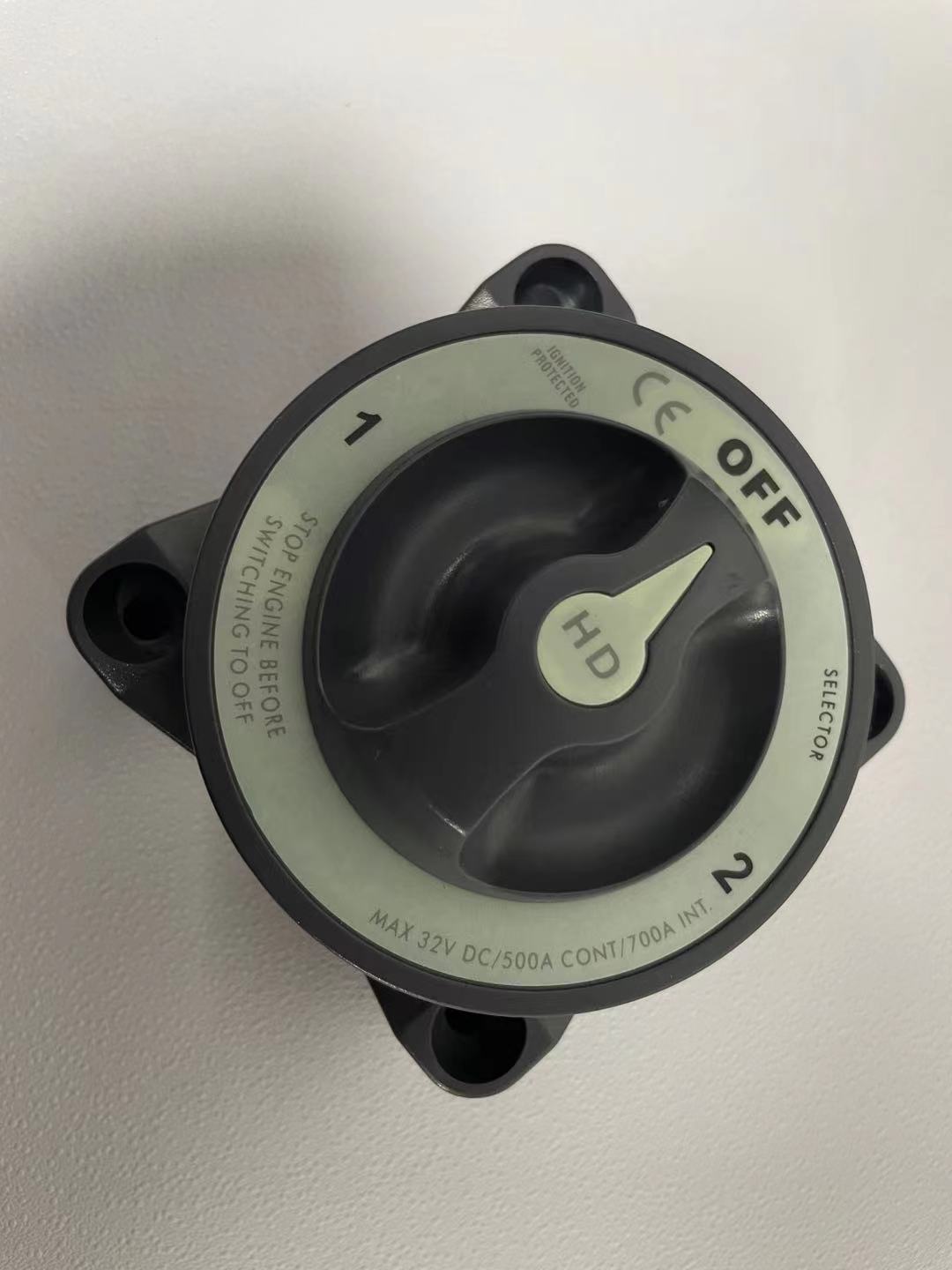

11003 32V DC 500A HD-Series Heavy Duty 3 Position Selector Battery Switch with AFD For Marine Yacht Boat

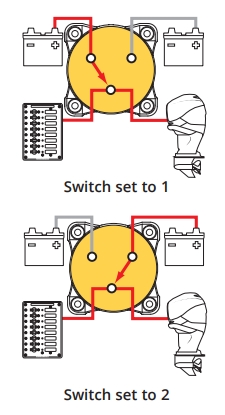

Switches isolated battery banks to all loads.
Selector 3 Position
Color: Grey
Switch Positions: 3
Battery Combine: No
Alternator Field Disconnect: Yes
Maximum Voltage: 32V DC
Continuous Rating: 500A
Intermittent Rating(5 mins): 700A
Cranking Rating 30 sec: 1600A
Stud Material: Tinned Copper
Terminal Stud Torque: 220 in-lb (24.86 Nm)

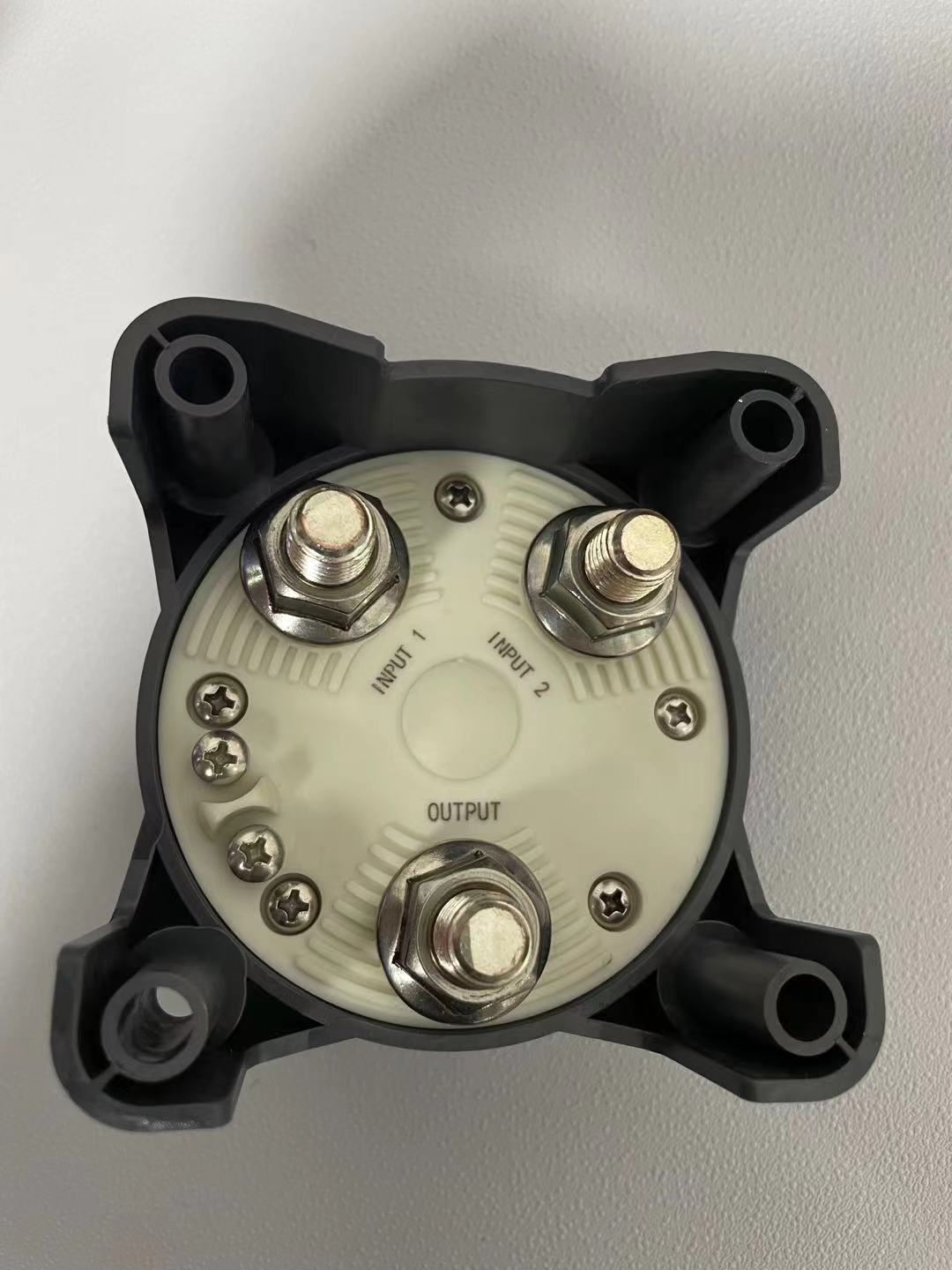

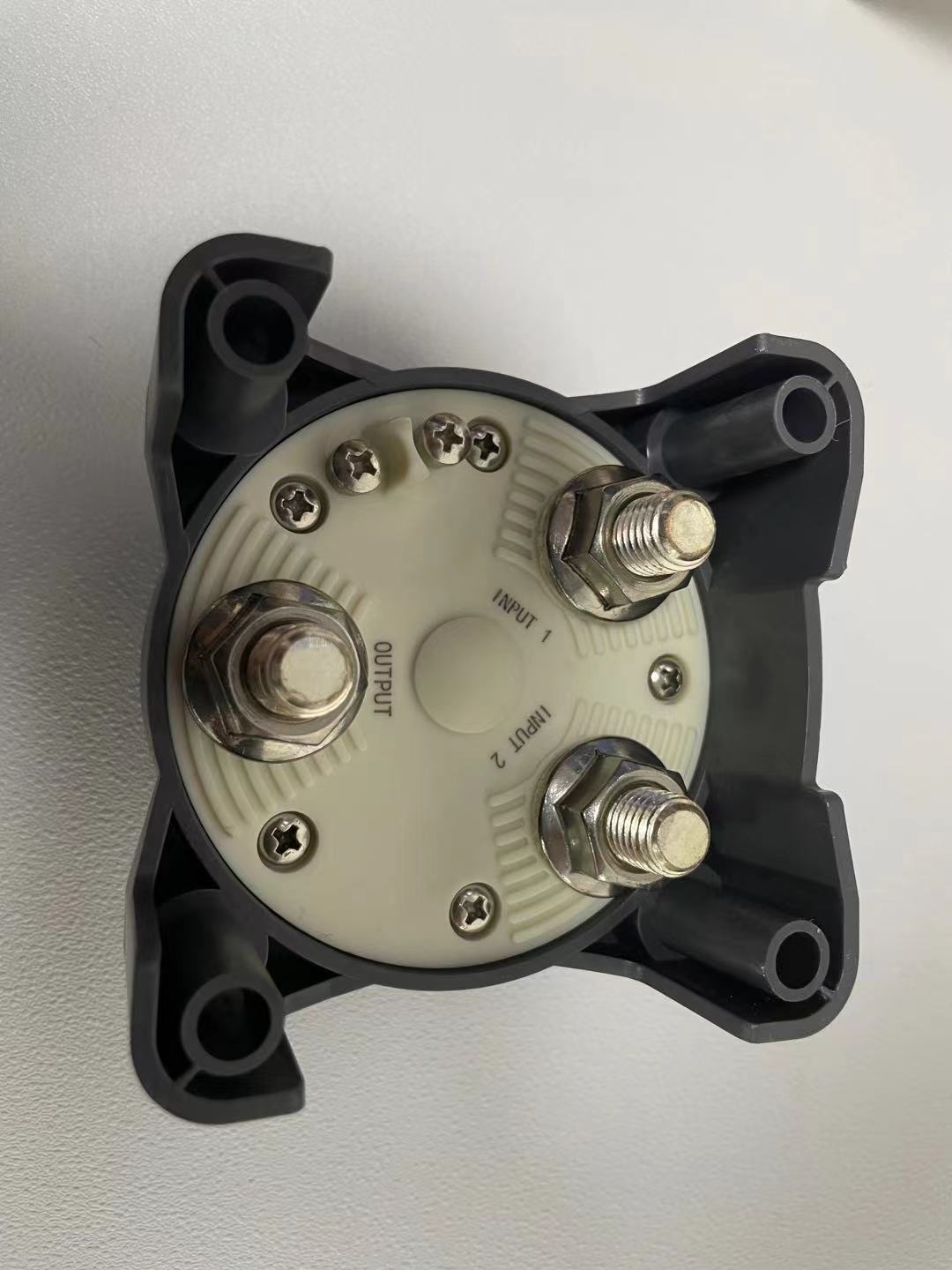

Battery Inputs: 2
Cable Clearance For 4/0 AWG Cables: 1.10in (27.94 mm)
Cable Quantity to Meet Ratings: Two cables/Terminal
Cable Size to Meet Ratings: 4/0 AWG (120mm²)
Mounting Holes: Accept 1/4''(M6) Screw
Terminal stud size: 1/2'' (M12)
Maximum Voltage: 32V DC
Continuous Rating: 500A
Intermittent Rating(5 mins): 700A
Cranking Rating 30 sec: 1600A
Selector 3 Position
