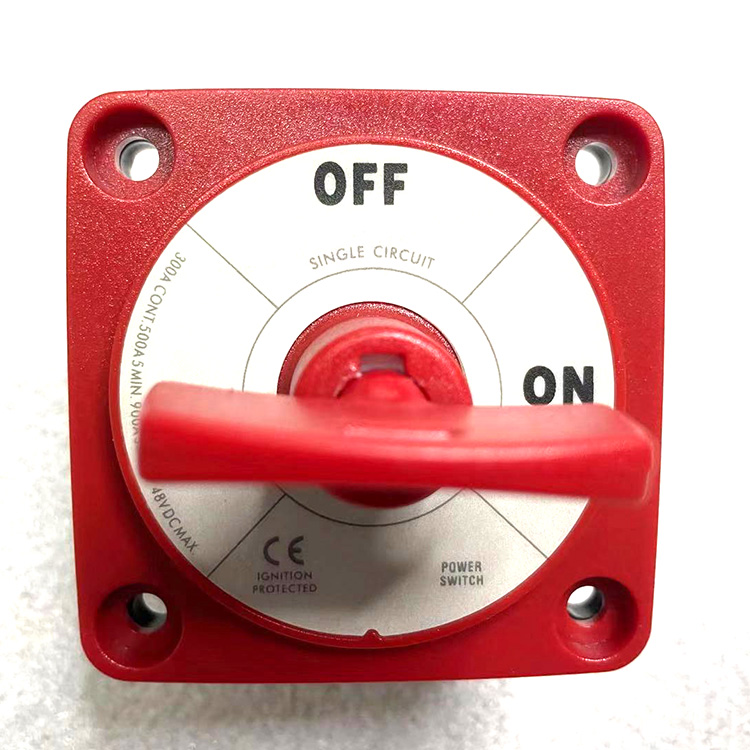

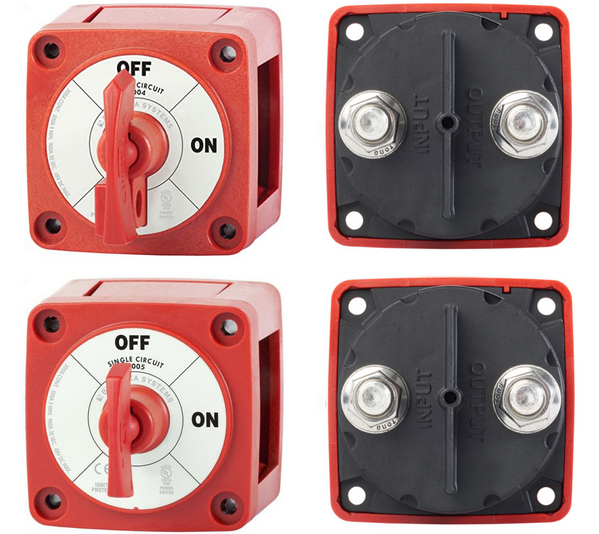

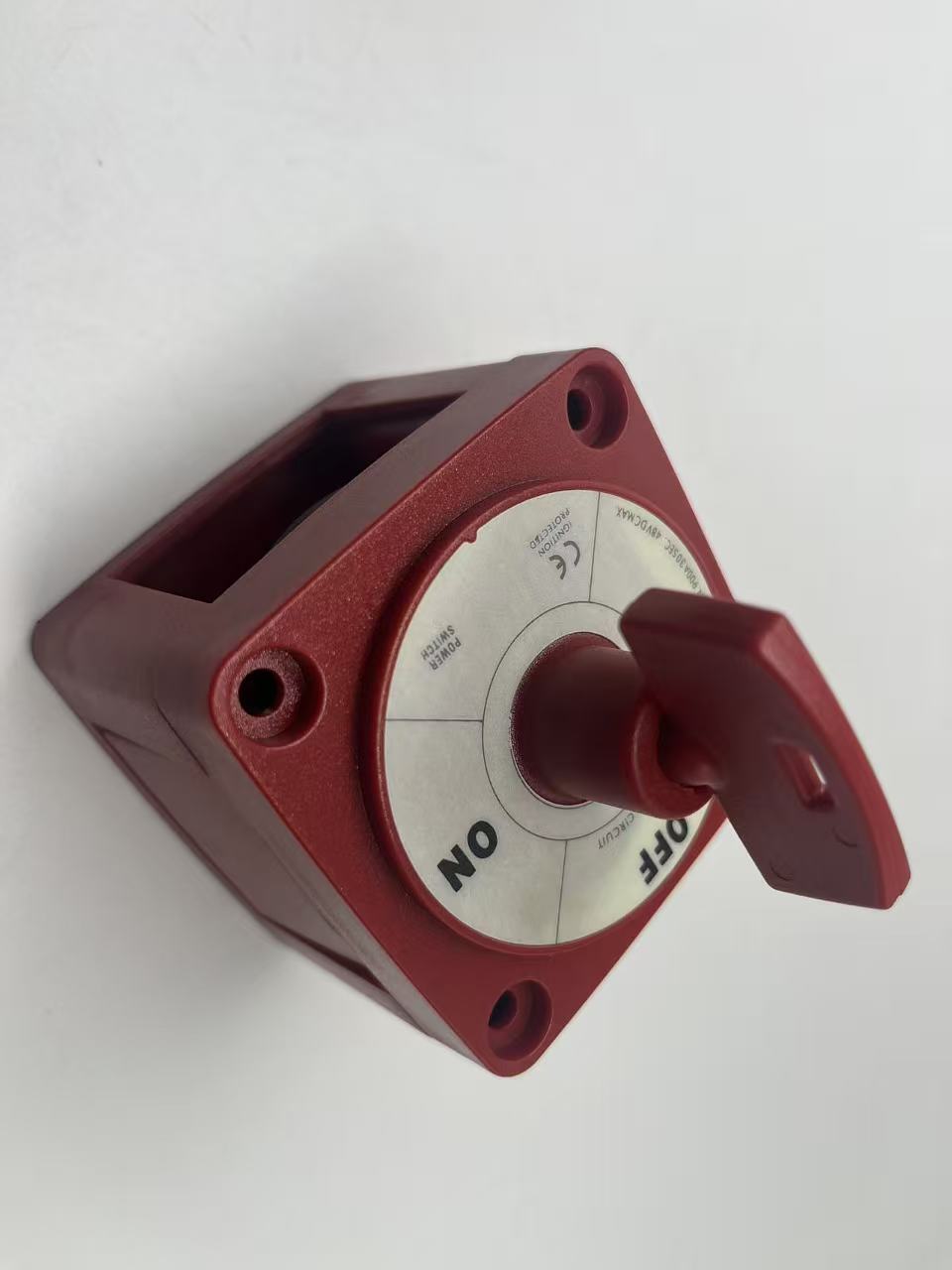

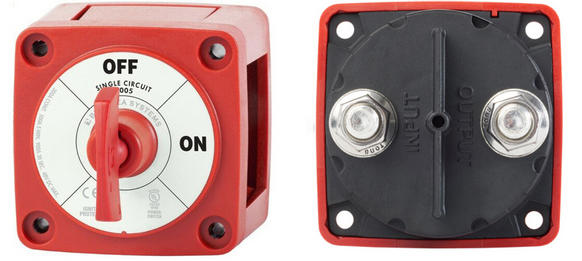

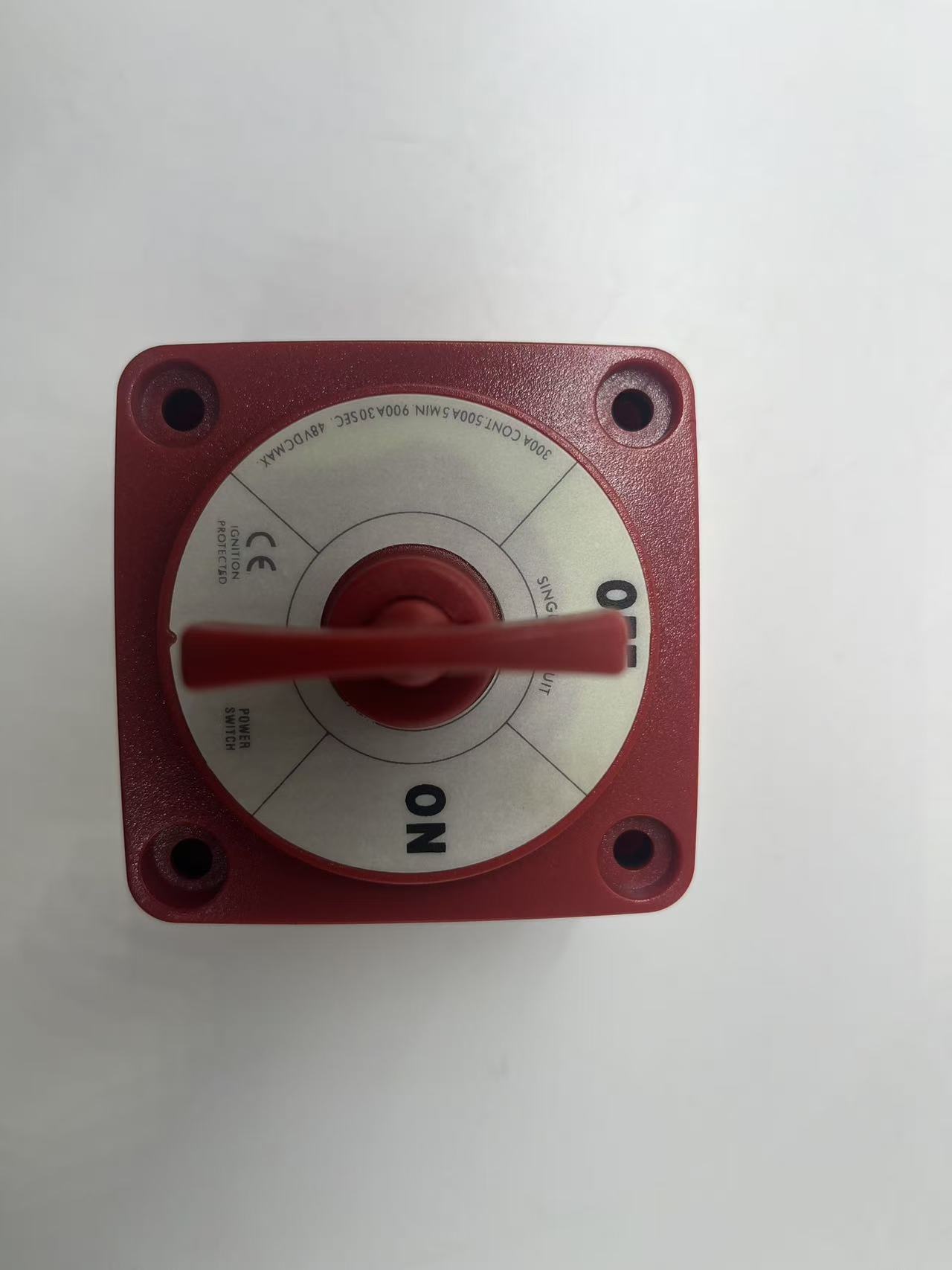

m-Series Mini On-Off Battery Switch with Key - Red

Switches a single battery to a single load group

• Ignition protected—safe for installation aboard gasoline powered boats
• Case design allows surface, front panel, or rear panel mounting

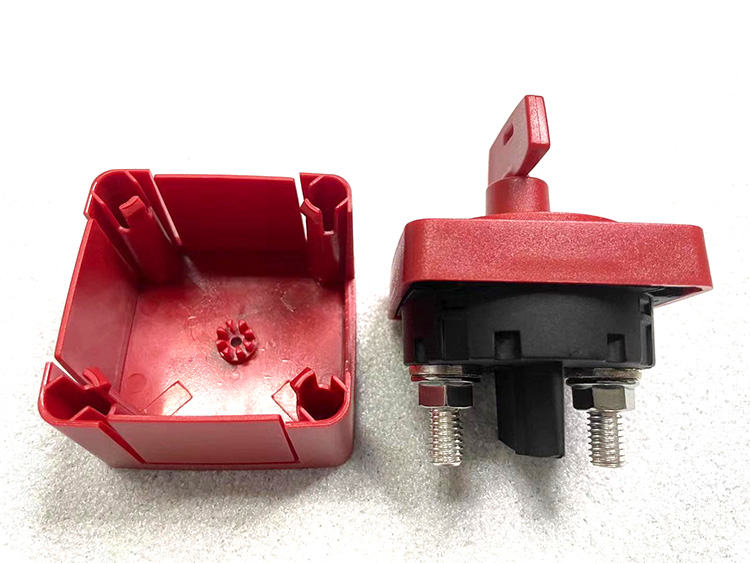

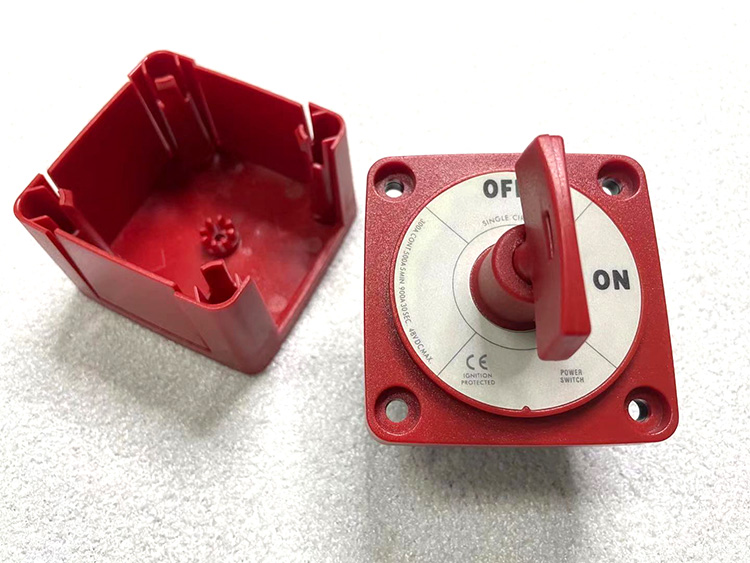

• Isolating cover with snap-on sections protects rear contacts

Single Circuit ON-OFF

Color: Red
Switch Positions: 2
Battery Combine: No
Alternator Field Disconnect: No
Maximum Voltage: 48V DC

Terminal Stud Torque: 120 in-lb (13.56 Nm)

Stud Size: 3/8"

Continuous Rating: 300A
Intermittent Rating: 500A (5 min)
Cranking Rating 30sec: 900A
Battery Inputs: 1
Cable Clearance For 4/0 AWG Cables: 1.12in (28.45 mm)
Cable Size to Meet Ratings: 4/0 AWG (120mm²)
Mounting Holes: Accept #10 Screw
Stud Material: Tinned Copper
Stud Torque: 120 in-lb (13.56 Nm)
Terminal Stud Size: 3/8" - 16 (M10)
