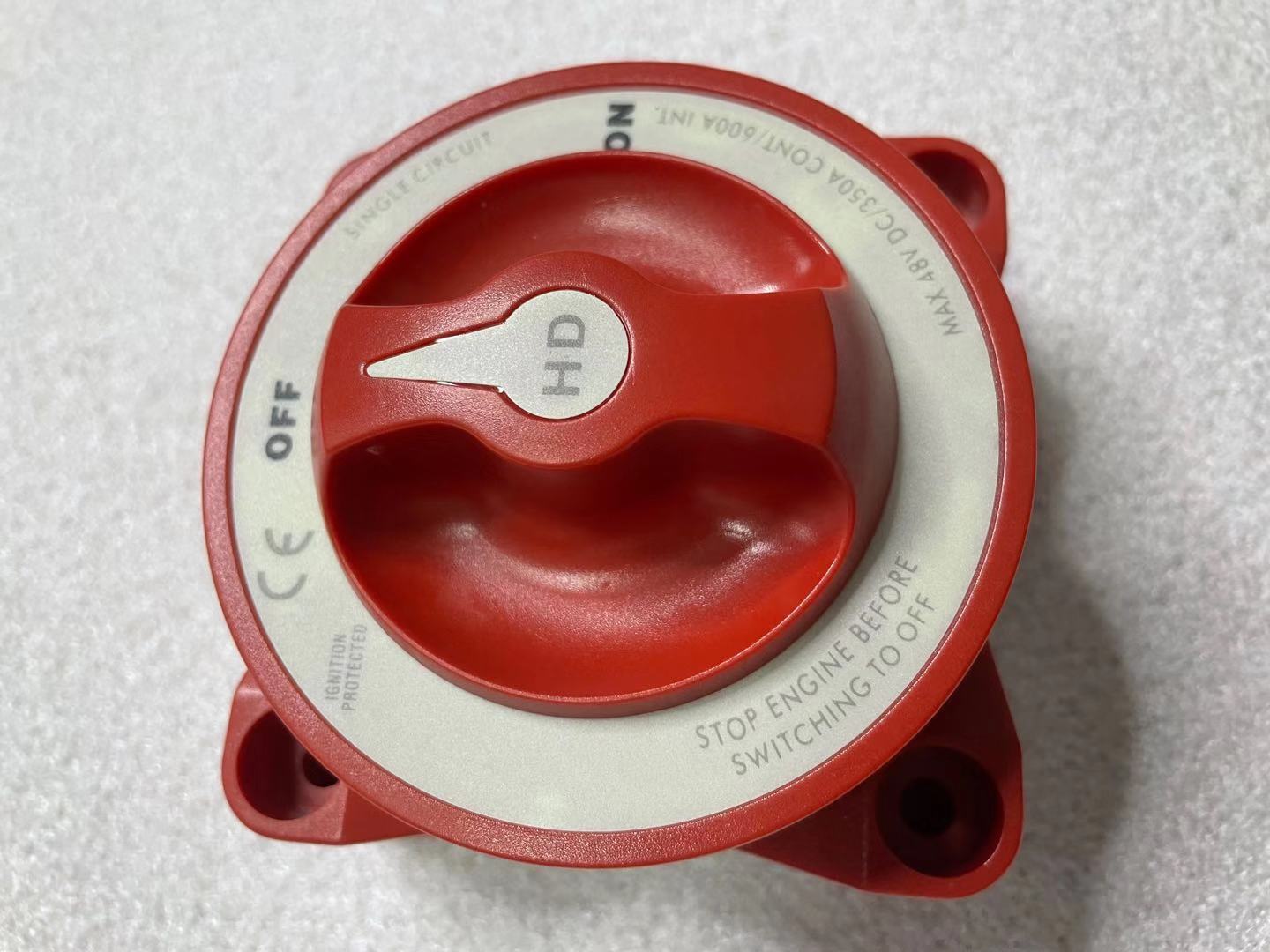

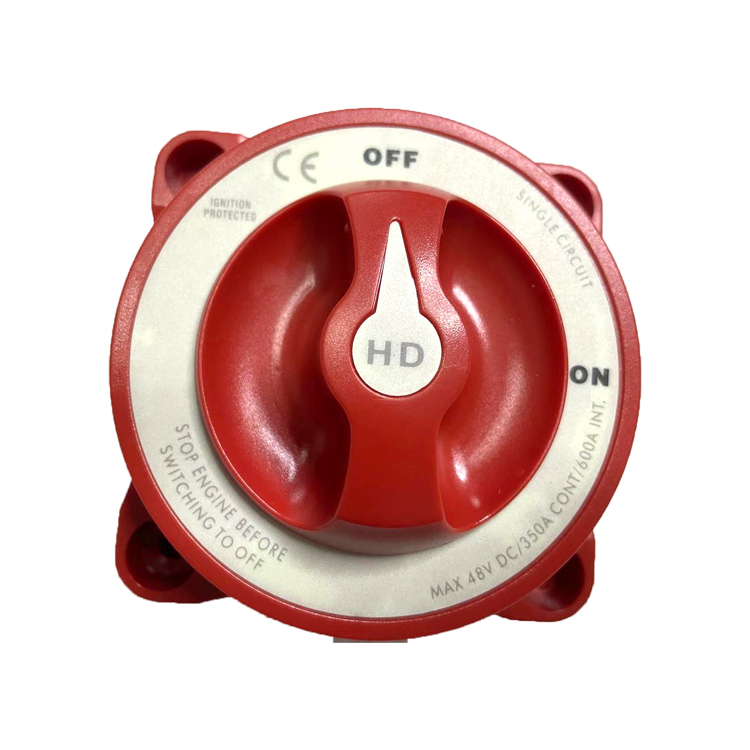

9003 48V DC 350A e-Series On Off Battery Switch Red Color For Marine Selector Switch

9003 48V DC 350A e-Series On Off Battery Switch Red Color For Marine Selector Switch

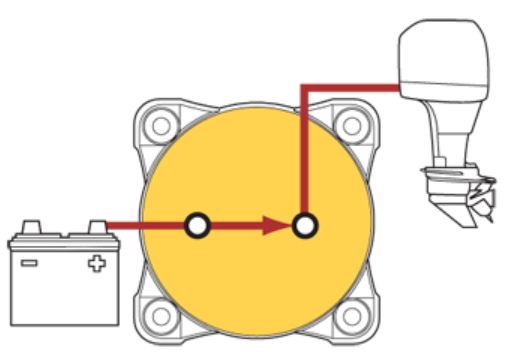

Switches a single battery to a single load group

Single circuit ON-OFF

Color: Red

Switch Positions: 2

Battery Combine: No

Alternator Field Disconnect: No

Maximum Voltage: 48V DC

Continuous Rating: 350A

Intermittent Rating(5 mins): 600A

Cranking Rating 30 sec: 1200A

Stud Material: Tinned Copper

Terminal Stud Torque: 140 in-lb (15.82 Nm)

Battery Inputs: 1

Cable Clearance For 4/0 AWG Cables: 1.10in (27.94 mm)

Cable Size to Meet Ratings: 4/0 AWG (120mm²)

Mounting Holes: Accept 1/4''(M6) Screw

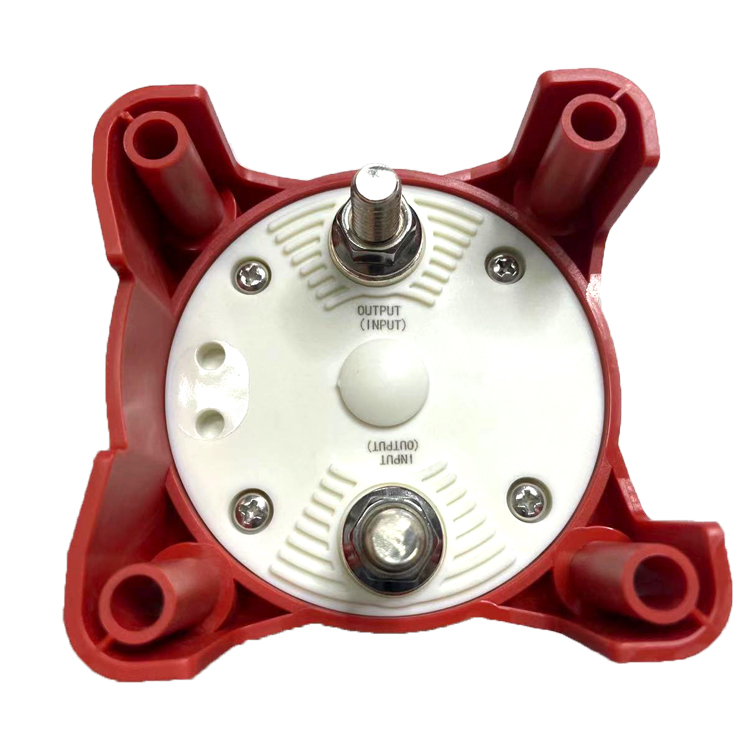

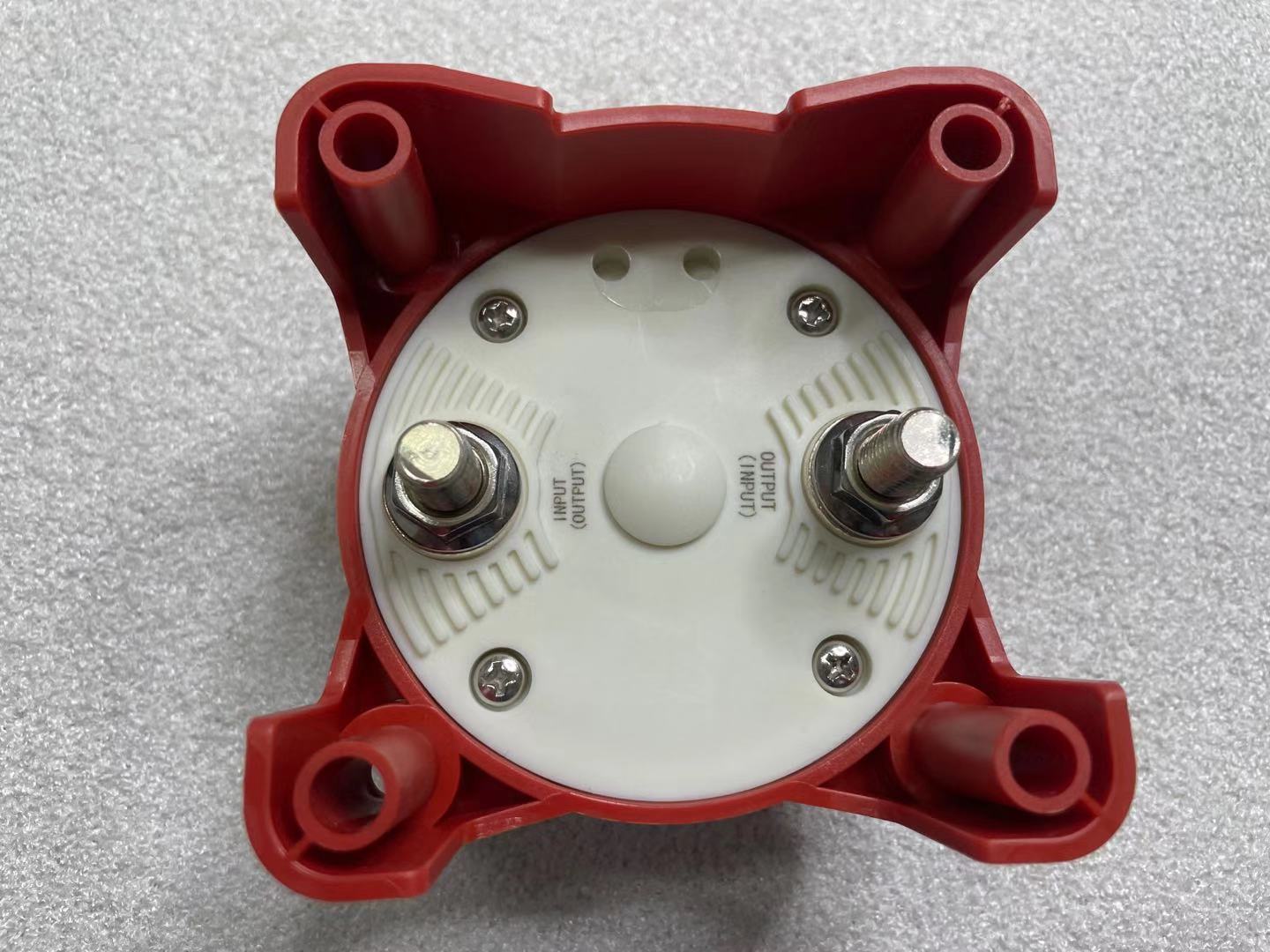

Terminal stud size: 3/8''-16 (M10)
