6007200 32V DC 300A m-Series Mini Selector Battery Switch Black Color For Marine

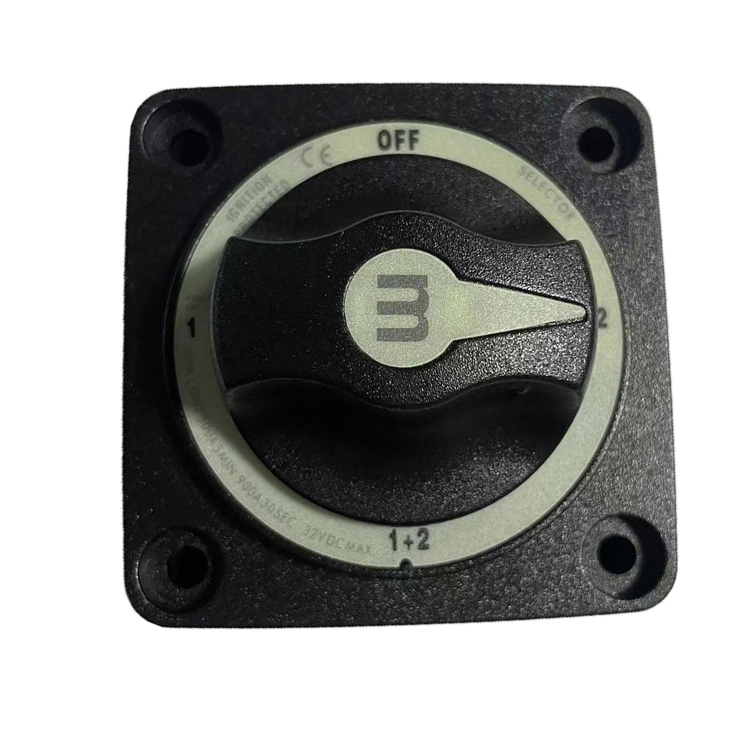

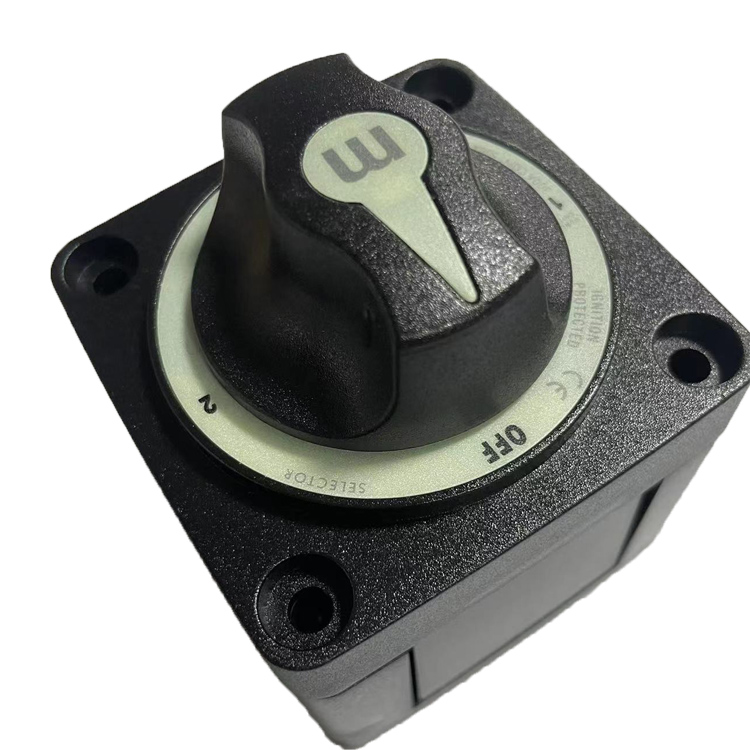

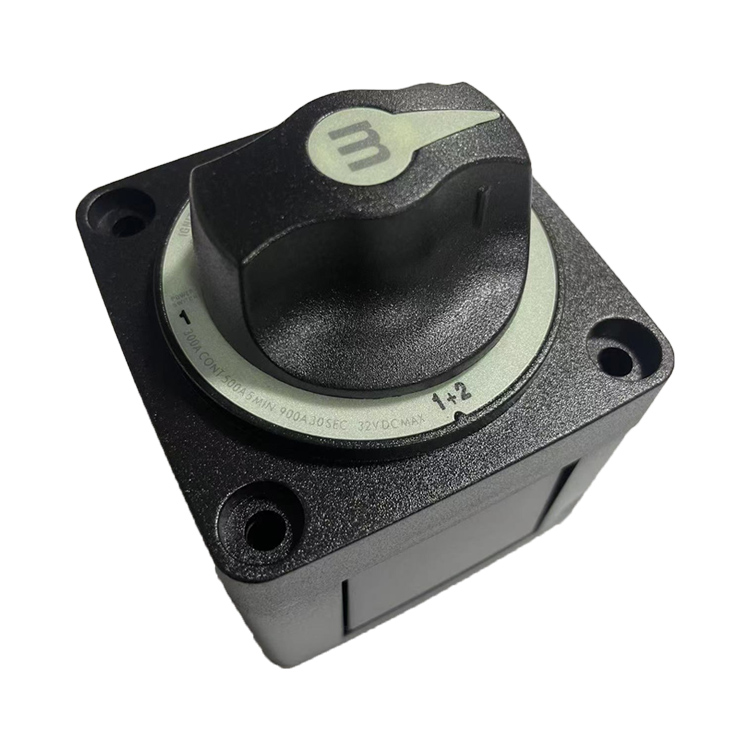

6007200 m-Series Mini Selector Battery Switch

Switches isolated battery banks to all loads or combines battery banks to all loads

Selector 4 Position

Color: Black

Switch Positions: 4

Battery Combine: Yes

Alternator Field Disconnect: No

Maximum Voltage: 32V DC

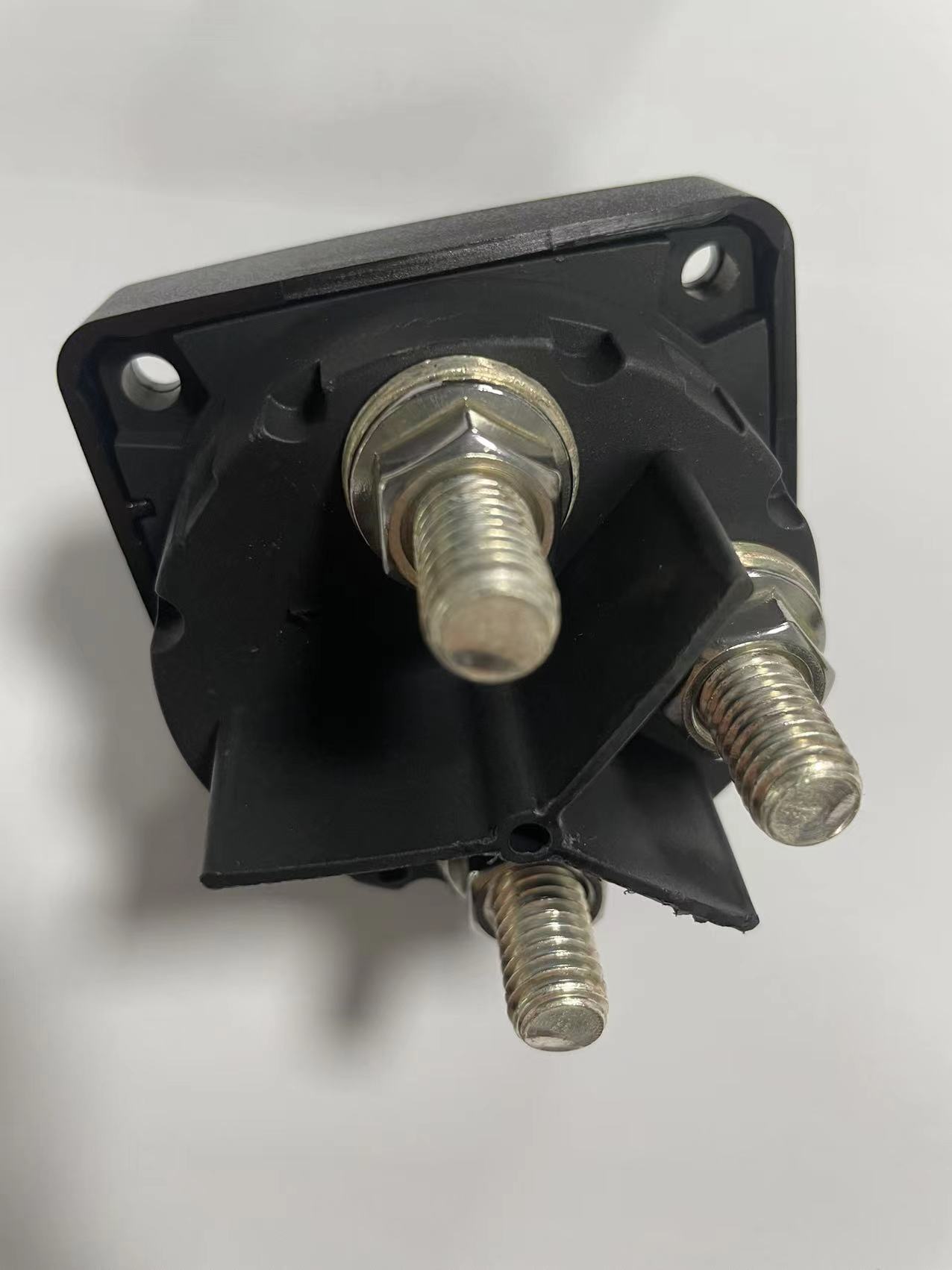

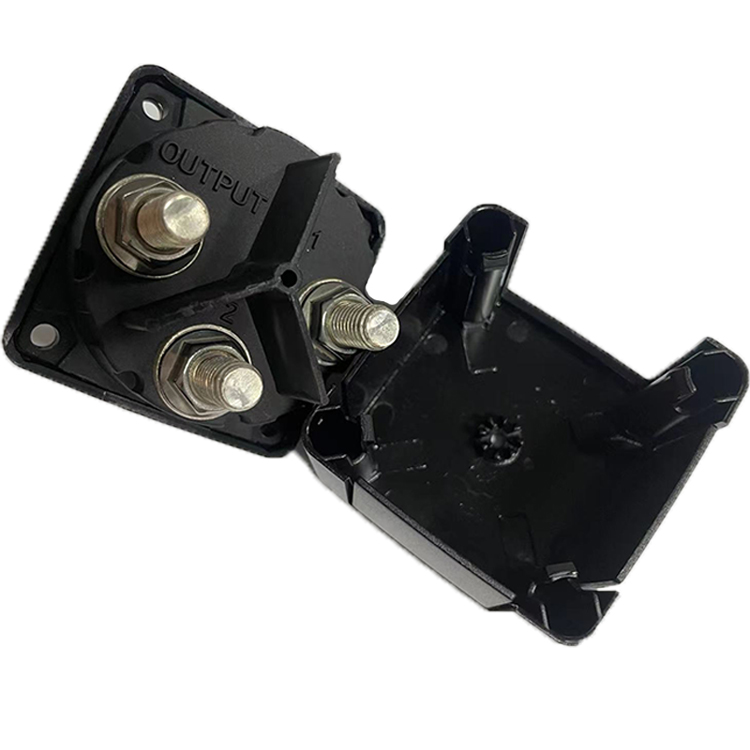

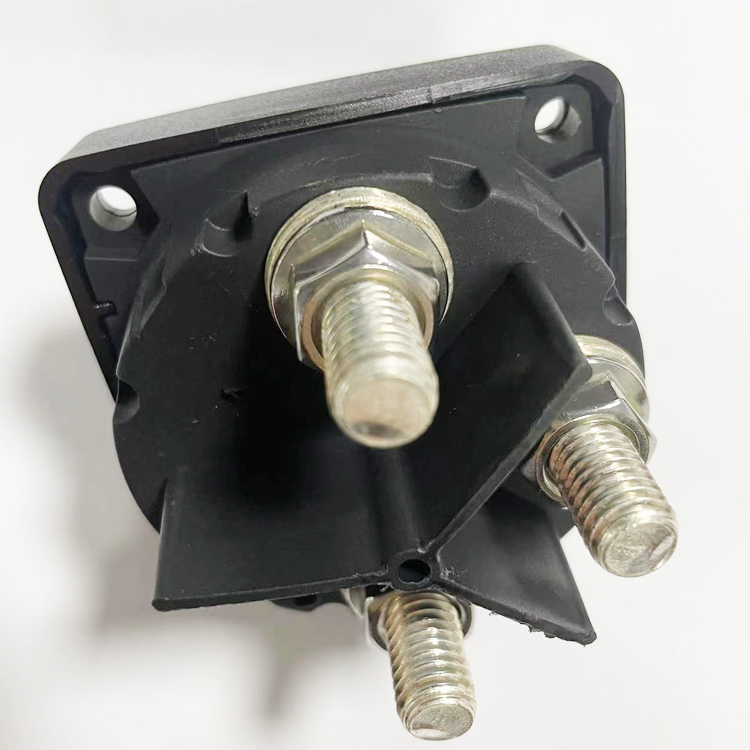

Stud Size: 3/8"

Continuous Rating: 300A

Intermittent Rating: 500A

Cranking Rating 30 sec: 900A

Stud Material: Tinned Copper

Terminal Stud Torque: 120 in-lb (13.56 Nm)

Battery Inputs: 2

Cable Clearance For 4/0 AWG Cables: 1.12in (28.45 mm)

Cable Size to Meet Ratings: 4/0 AWG (120mm²)

Mounting Holes: Accept #10 Screw

Stud Torque: 120 in-lb (13.56 Nm)

Terminal stud size: 3/8''-16 (M10)
