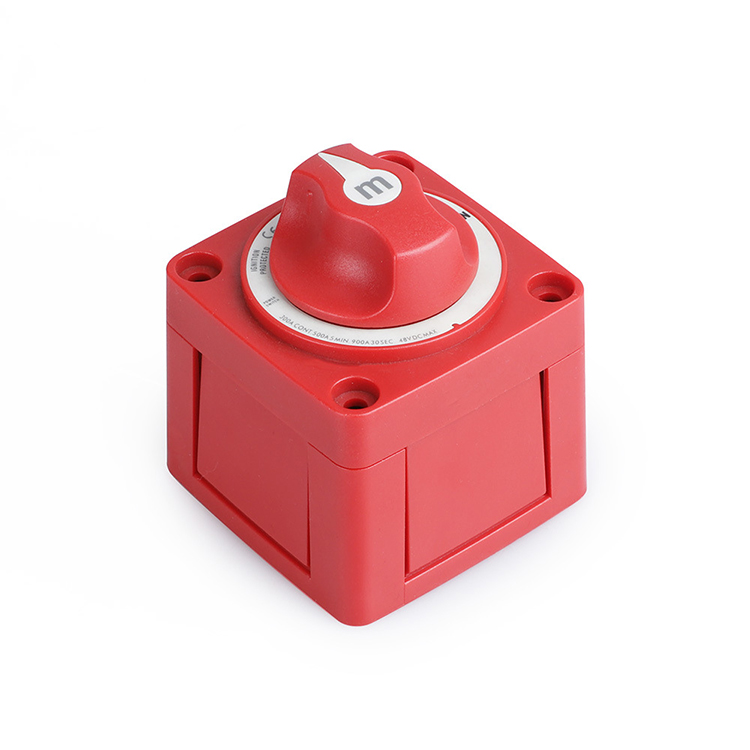

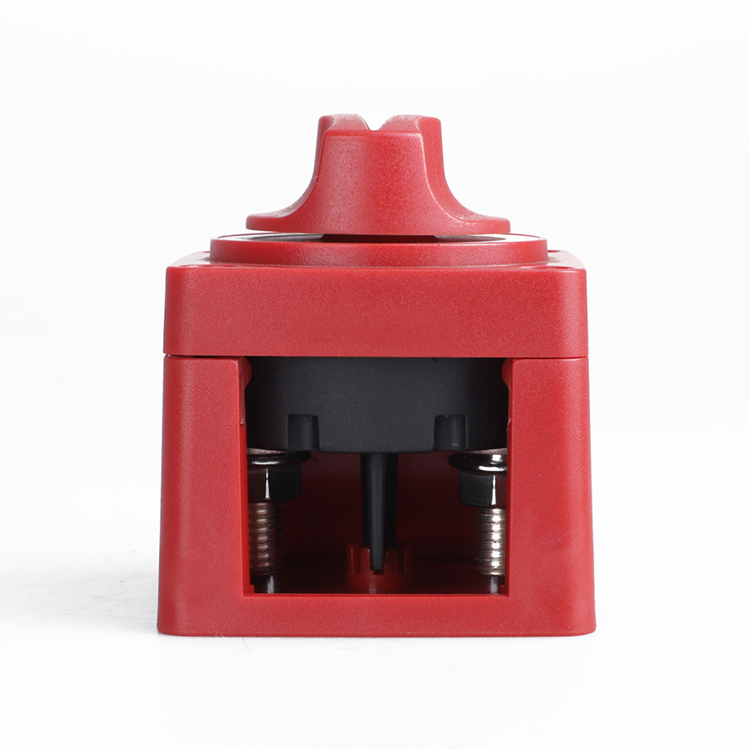

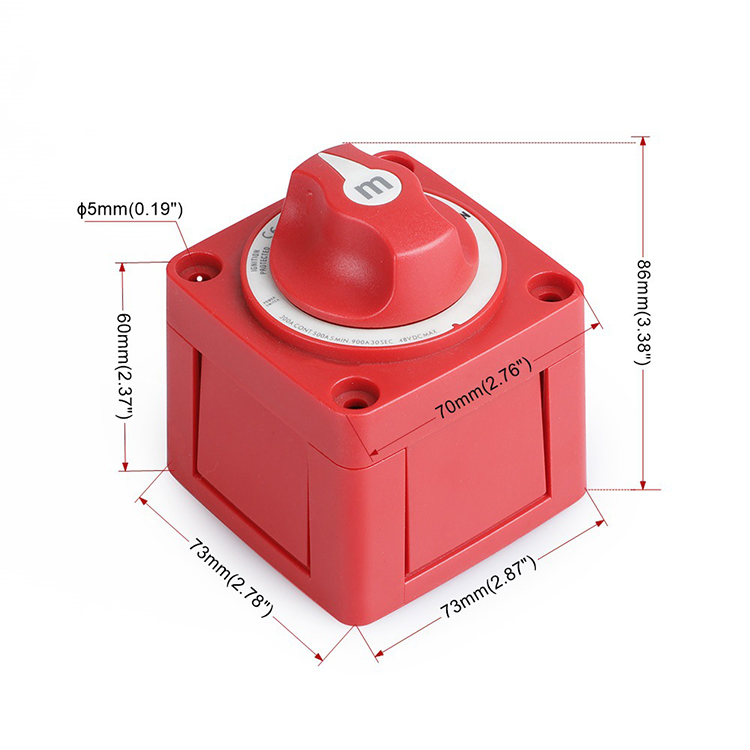

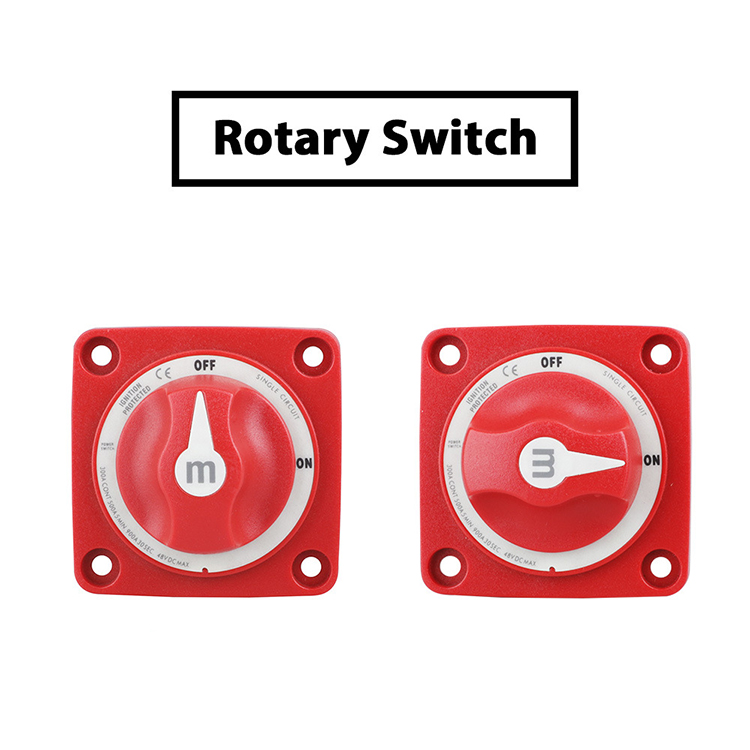

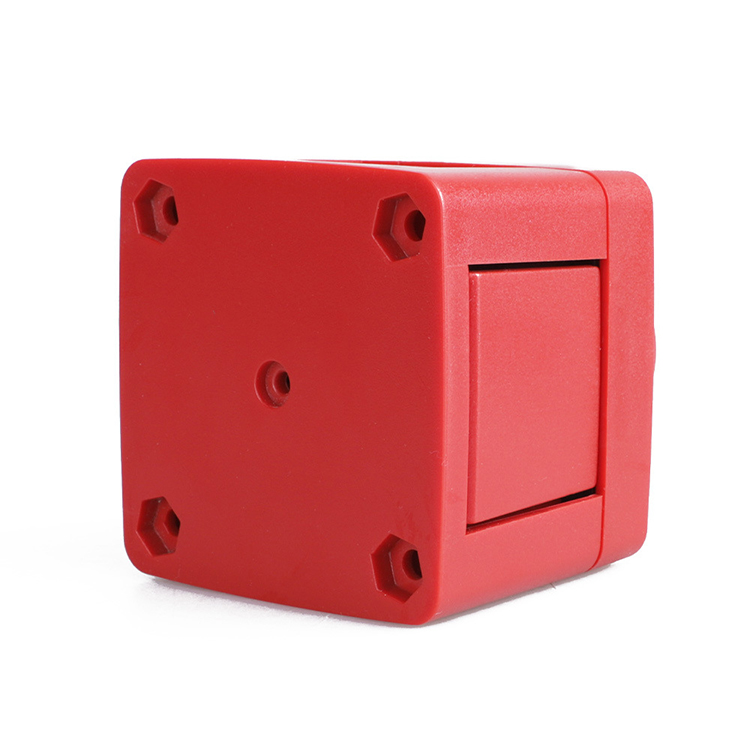

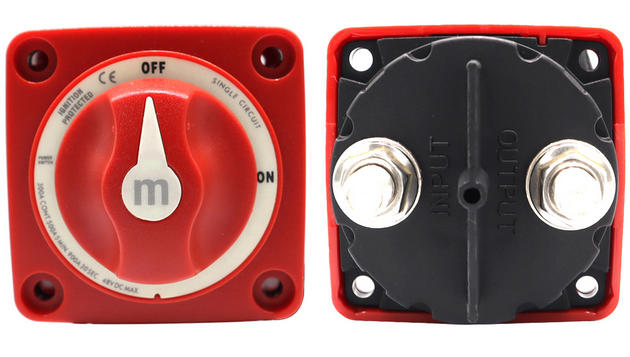

300A Red 6006 Blue Sea Type Battery Switch for RVs Marine Boat Yacht

Product ID : BY-A6006
Product Attributes :

m Series Battery Switches

300 Amps continuous rating for outboards and small

gasoline or diesel engines

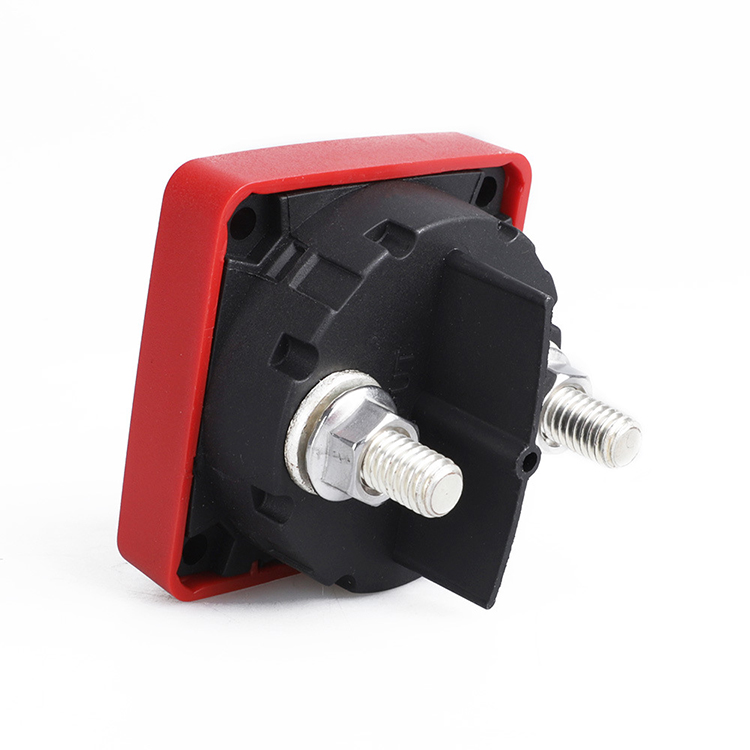

• Tin-plated copper studs for maximum conductivity and corrosion resistance
• Studs accept 3/8" (M10) ring terminals
• 7/8" (22 mm) stud length accepts multiple cable terminals
• Blue Sea Systems one-piece terminal stud design never loosens over time
• One-piece stainless flange nuts ensure safe and secure connections
• Isolating cover protects rear contacts
• Breakout tabs allow wire access in any direction

Cranking Rating: 30 sec.：900A
Intermittent Rating: 5 min.：500A
Continuous Rating：300A
Voltage Max. Operating：48V DC

Single Circuit ON-OFF RED


Product Description
Cranking Rating: 30 sec.：900A
Intermittent Rating: 5 min.：500A
Continuous Rating：300A
Voltage Max. Operating：48V DC


Single Circuit ON-OFF RED
