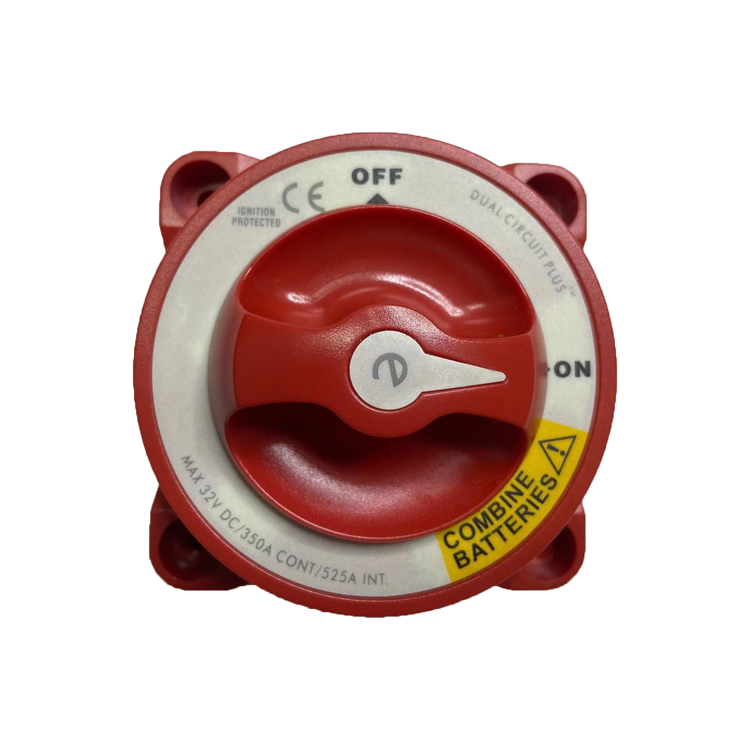

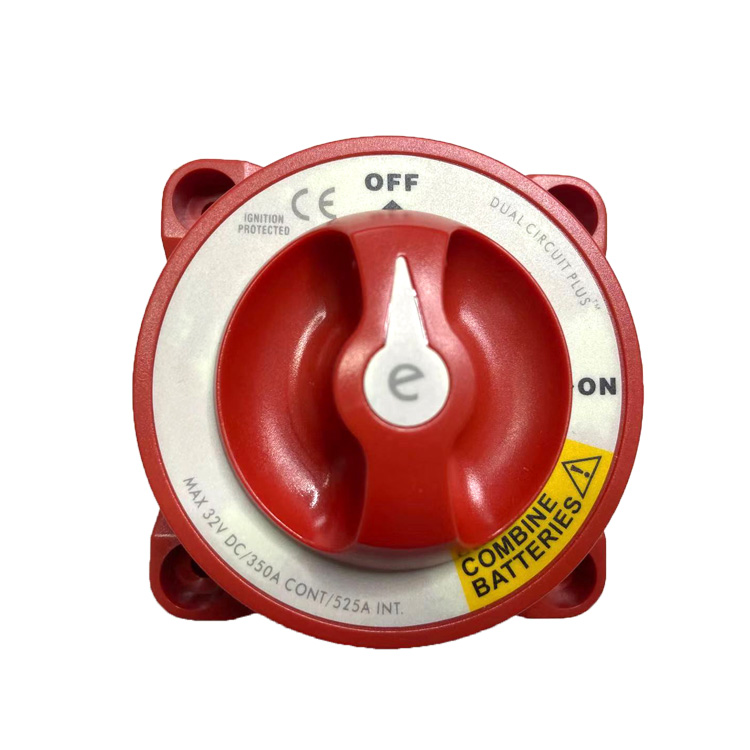

5511 e-Series Dual Circuit Plus Battery Switch

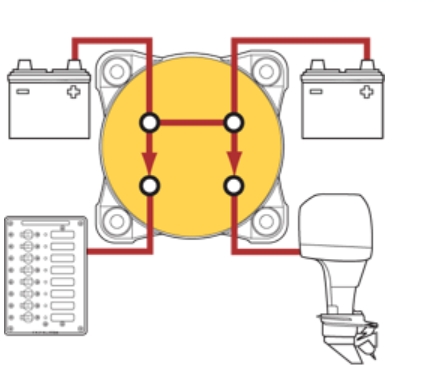

Simultaneously switches two isolated battery banks or combines battery banks to all loads

Dual Circuit Plus

Color: Red

Switch Positions: 3

Battery Combine: Yes

Alternator Field Disconnect: No

Maximum Voltage: 32V DC

Continuous Rating: 350A

Intermittent Rating(5 mins): 525A

Cranking Rating 30 sec: 700A per circuit

Stud Material: Tinned Copper

Terminal Stud Torque: 140 in-lb (15.82 Nm)

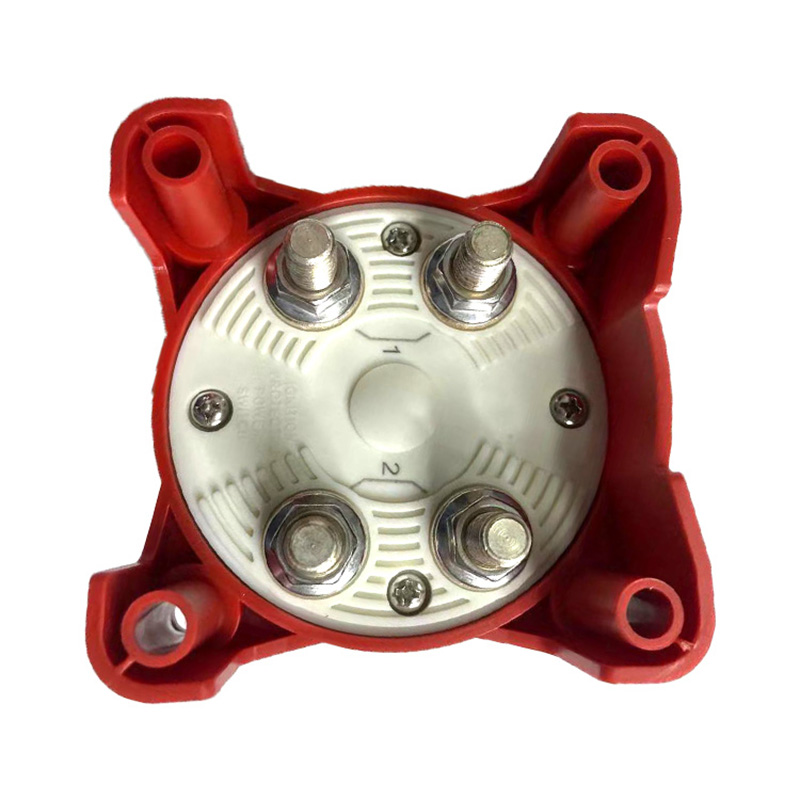

Battery Inputs: 2

Cable Clearance For 4/0 AWG Cables: 1.10in (27.94 mm)

Cable Size to Meet Ratings: 4/0 AWG (120mm²)

Mounting Holes: Accept 1/4'' (M6) Screw

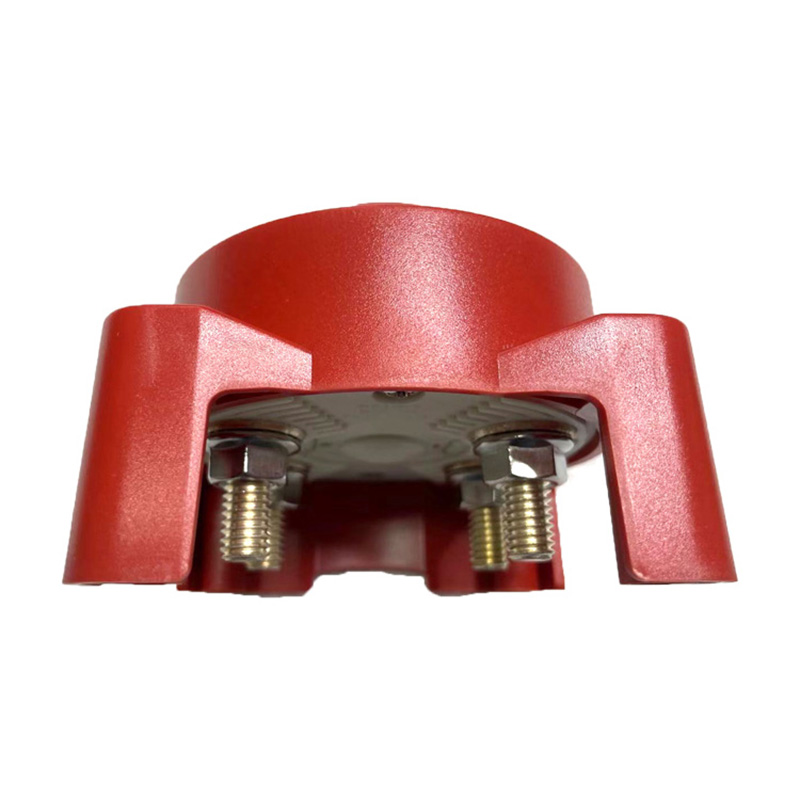

Terminal stud size: 3/8''-16 (M10)
